Запчасти Case IH JX90 (1.40. 0/06[01]) - 4WD FRONT AXLE - BEVEL GEAR/PINION SET (04) - FRONT AXLE & STEERING

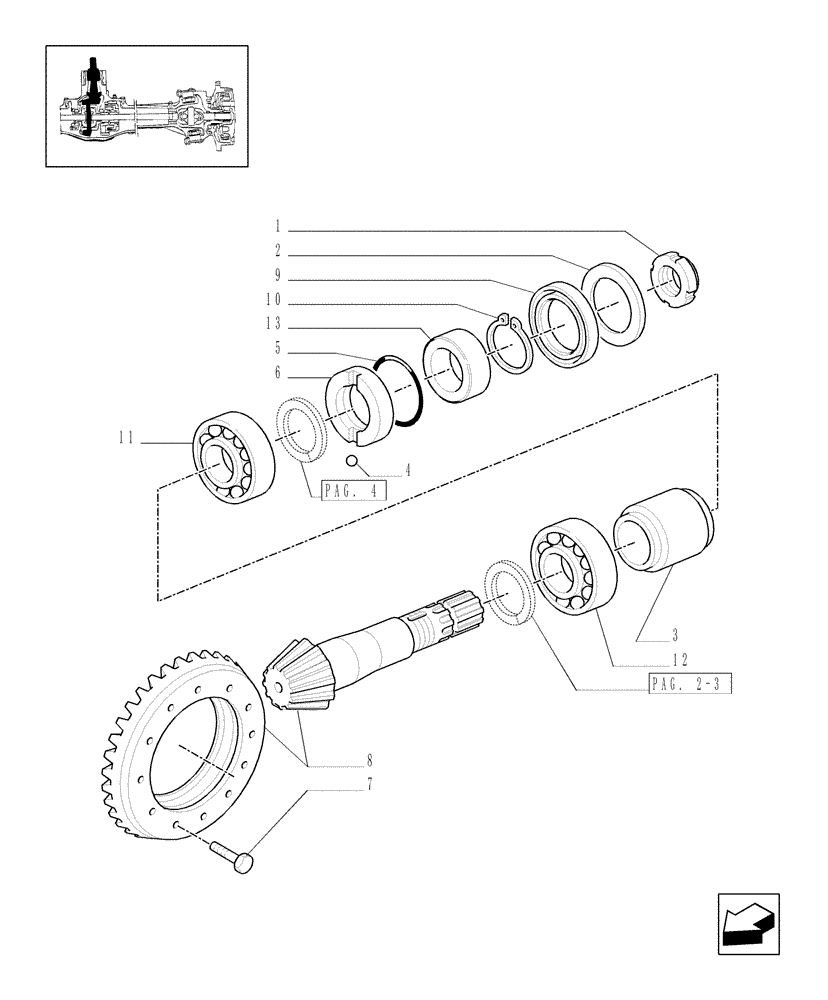

Схема запчастей Case IH JX90 - (1.40. 0/06[01]) - 4WD FRONT AXLE - BEVEL GEAR/PINION SET (04) - FRONT AXLE & STEERING
6
13
11
1
8
3
pag. 2-3
pag. 4
2
7
5
4
9
10
12

Артикул

Название

Примечание

Количество

1

4997450

RING NUT

JX60, JX70

1шт.

1

5143242

RING NUT,M35 x 1.5

JX80, JX90, JX95

1шт.

2

4997451

SEAL PROTECTION,45.4mm ID x 75mm OD x 1mm Thk

1шт.

3

4997452

SPACER

JX60, JX70

1шт.

3

5169235

SPACER,35.4mm ID x 42mm OD x 63.5mm L

JX80, JX90, JX95

1шт.

4

20419320

BALL,6.35mm OD

JX80, JX90, JX95

1шт.

5

14454380

O-RING,31.47mm ID x 1.78" Width

JX80, JX90, JX95

1шт.

6

5142026

RING,35.1mm ID x 45mm OD x 22mm L

JX80, JX90, JX95

1шт.

7

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

12шт.

8

5119221

BEVEL GEAR

(9/38), Ring & Pinion, JX60, JX70

1шт.

8

5142023

GEAR SET

(9/39), Ring & Pinion, JX80, JX90, JX95

1шт.

8

5149443

GEAR SET

VAR.115-319, JX80, JX90, JX95

1шт.

9

5135294

SEAL,45mm ID x 75mm OD x 12mm Thk

1шт.

10

11067776

SNAP RING,M29, Ext

1шт.

11

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

35 x 72 x 18.25, JX60, JX70

1шт.

11

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

JX80, JX90, JX95

1шт.

12

28042230

TAPERED BEARING,40mm ID x 90mm OD x 25.25mm W

JX60, JX70

1шт.

12

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

JX80, JX90, JX95

1шт.

13

4997464

SEALING RING,35.1mm ID x 45mm OD x 20mm Thk

SEALRING JX60, JX70

1шт.

Выбрано товаров: 19
