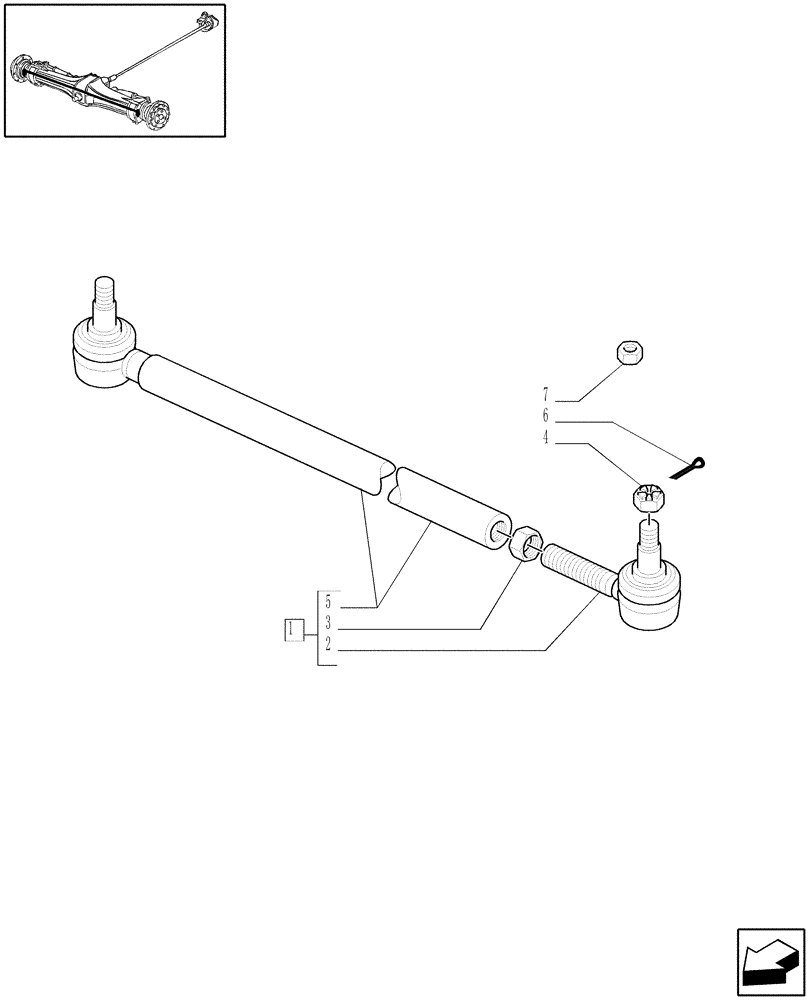

Запчасти Case IH JX90 (1.40. 0/04) - 4WD FRONT AXLE - TIE-ROD (04) - FRONT AXLE & STEERING

1

5135076

TRACK ROD ASSY

JX60, JX70

1шт.

1

5142233

TRACK ROD ASSY

JX80, JX90, JX95

1шт.

2

5109553

BALL JOINT

M16 x M20 Threads, JX60, JX70

1шт.

2

87542553

BALL JOINT

JX80, JX90, JX95

1шт.

3

587302

LOCK NUT,Hex, M20 x 1

JX60, JX70

1шт.

3

10726911

THIN NUT,Thin, M24 x 1.5 x 10.00mm High, ZND

JX80, JX90, JX95

1шт.

4

12575921

NUT,M16 x 1.5, Cl 05

JX60, JX70

2шт.

4

10724614

SLOTTED NUT,Thin Slotted, M18, 1.5mm Pitch, 15.00mm High, R80, DAC

JX80, JX90, JX95

2шт.

5

5135075

TIE-ROD,M20 x 1 x 1318mm L

JX60, JX70

1шт.

5

5142234

TRACK ROD ASSY

JX80, JX90, JX95

1шт.

6

10733804

COTTER PIN,4.00mm Dia x 16.00mm

JX80, JX90, JX95

2шт.

7

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

JX80, JX90, JX95

2шт.
