Запчасти Case IH JX90 (1.40. 0/01) - 4WD FRONT AXLE - BOX (04) - FRONT AXLE & STEERING

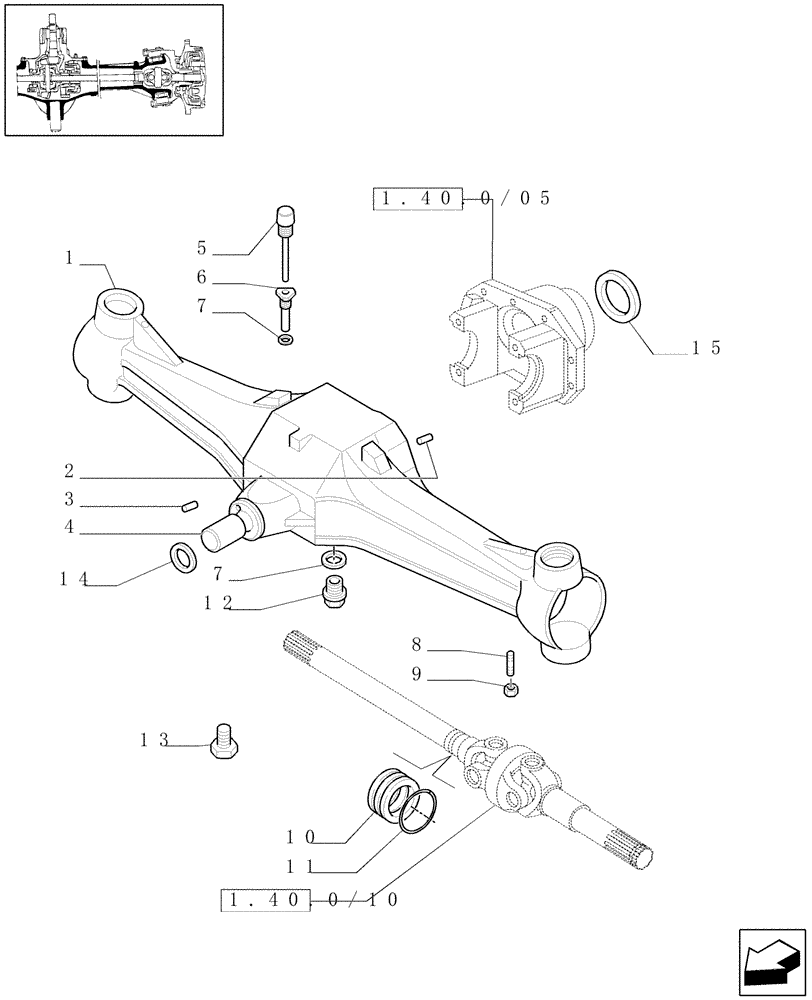

Схема запчастей Case IH JX90 - (1.40. 0/01) - 4WD FRONT AXLE - BOX (04) - FRONT AXLE & STEERING
15
7
7
1.40.0/10
11
8
14
3
9
2
4
6
5
13
12
1
10
1.40.0/05

Артикул

Название

Примечание

Количество

1

5135077

AXLE HOUSING

JX60, JX70, Incl. Ref. 2, 4

1шт.

1

5156372

FRONT AXLE

JX80, JX90, JX95

1шт.

2

4988170

PIN,10mm OD x 20mm L

2шт.

3

4966244

PIN,5mm OD x 15mm L

JX80, JX90, JX95

1шт.

4

4996836

PIN,52.67mm OD x 105mm L

JX60, JX70

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

JX80, JX90, JX95

1шт.

5

5101814

BREATHER

JX80, JX90, JX95

1шт.

6

5153744

BODY,M10 x 1

Breather, JX80, JX90, JX95

1шт.

7

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

JX80, JX90, JX95

3шт.

8

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.

9

16101511

NUT,M12 x 1.25, Cl 8

JX80, JX90, JX95

2шт.

9

16105021

LOCK NUT,M12 x 1.25, Cl 10

M12 x 1.25, JX60, JX70

2шт.

10

87371275

BUSHING,55mm ID x 75mm OD x 38mm L

JX60, JX70

2шт.

10

87371268

BUSHING,62mm ID x 85mm OD x 43mm L

JX80, JX90, JX95

2шт.

11

14464980

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

JX60, JX70

2шт.

11

4966231

O-RING,2.62mm Thk x 80mm ID, 70 Duro

JX80, JX90, JX95

2шт.

12

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

2шт.

13

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

14

4996778

RING

JX60, JX70

1шт.

14

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

JX80, JX90, JX95

1шт.

15

4996779

RING,99.3mm ID x 128mm OD x 5mm Thk

JX60, JX70

1шт.

Выбрано товаров: 21
