Запчасти Case IH JX90 (1.33.0/02) - (VAR.384) ELECTROHYDRAULIC DIFFERENTIAL LOCK E ELECTROHYDRAULIC 4WD ENGAGEMENT - 4WD IDLER CASE (04) - FRONT AXLE & STEERING

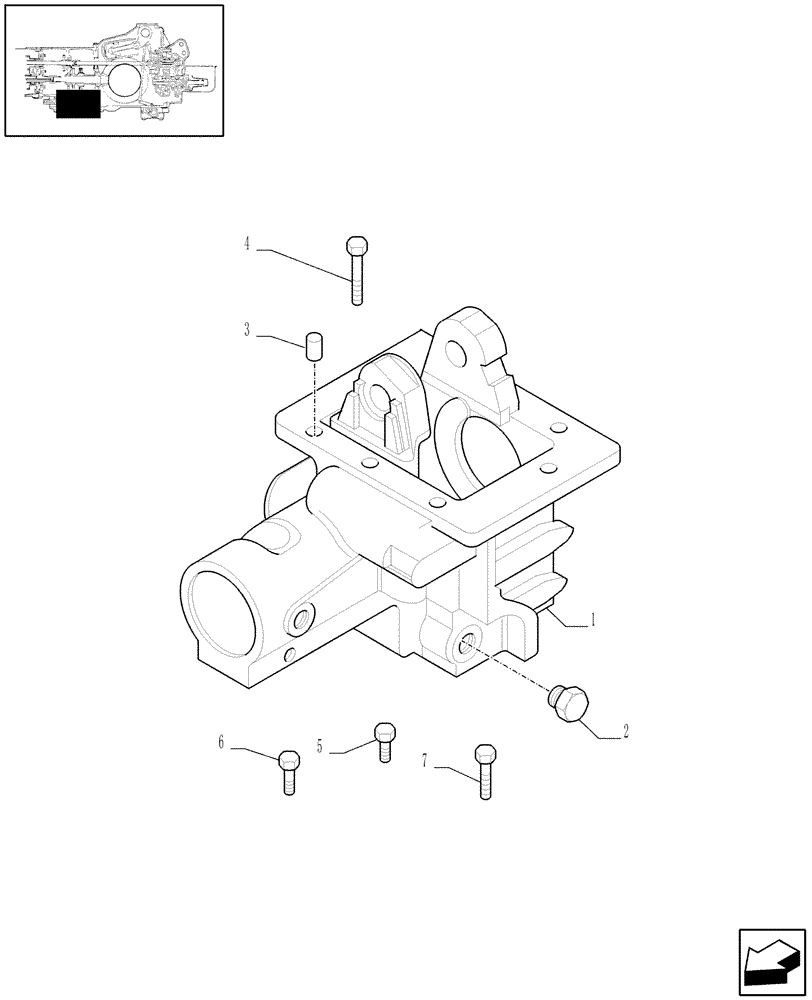

Схема запчастей Case IH JX90 - (1.33.0/02) - (VAR.384) ELECTROHYDRAULIC DIFFERENTIAL LOCK E ELECTROHYDRAULIC 4WD ENGAGEMENT - 4WD IDLER CASE (04) - FRONT AXLE & STEERING
1
4
6
7
2
3
5

Артикул

Название

Примечание

Количество

1

84145719

HOUSING

1шт.

2

86598047

PLUG,Hex Soc, M22 x 1.5, ORB

1шт.

3

10839810

DOWEL,12mm OD x 18mm L

2шт.

4

15541721

SCREW,Hex, M12 x 1.25 x 110mm, Cl 8.8

1шт.

5

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

6

15540921

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

1шт.

7

15542021

SCREW,Hex, M12 x 1.25 x 140mm, Cl 8.8

1шт.

8

15541721

SCREW,Hex, M12 x 1.25 x 110mm, Cl 8.8

1шт.

Выбрано товаров: 8
