Запчасти Case IH JX90 (1.19.1/02[01A]) - (VAR.199) AIR FILT. DUST EJECT. - DRY AIR CLEANER - D6355 (02) - ENGINE EQUIPMENT

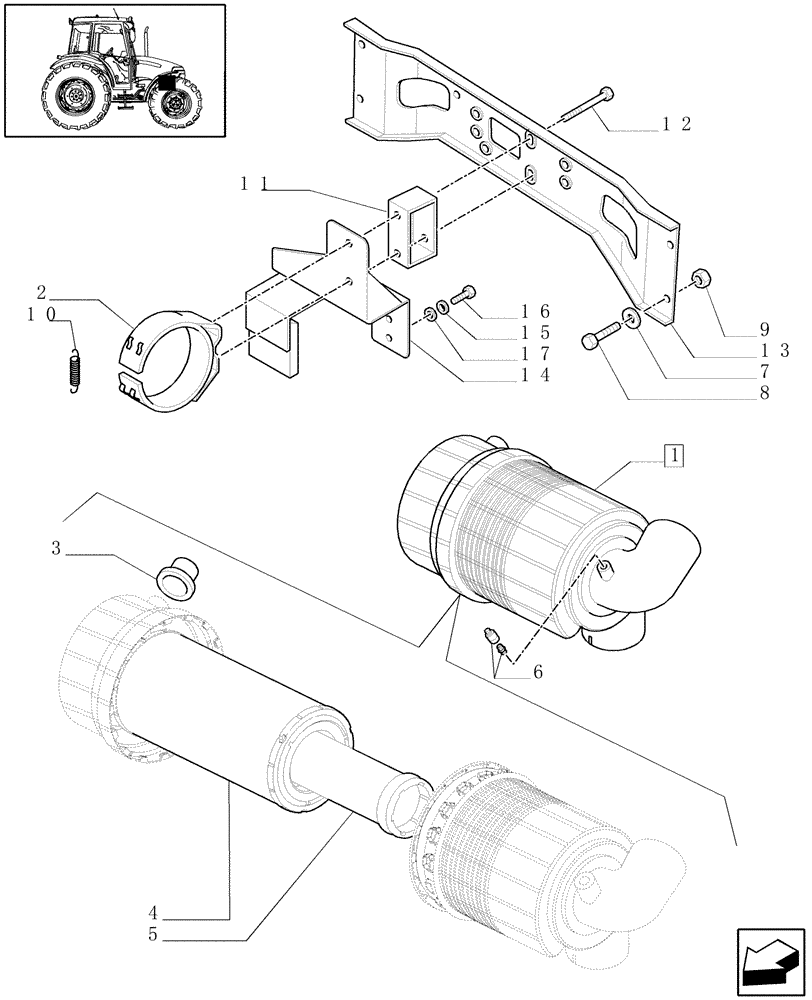

Схема запчастей Case IH JX90 - (1.19.1/02[01A]) - (VAR.199) AIR FILT. DUST EJECT. - DRY AIR CLEANER - D6355 (02) - ENGINE EQUIPMENT
1
16
12
5
13
14
10
9
8
3
11
6
7
17
2
4
15

Артикул

Название

Примечание

Количество

1

47131297

AIR CLEANER

ASSY., 213mm OD x 362.2mm L

1шт.

2

84209099

SUPPORT

1шт.

Valid for JX90, JX95 for Models only

1шт.

2

5092640

BRACKET

1шт.

Valid for JX70 for Model only

1шт.

3

47134169

DRAIN PLUG

1шт.

4

87682993

AIR FILTER,91mm ID x 164.5mm OD x 347.5mm L

1шт.

5

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

1шт.

6

5138819

INDICATOR

1шт.

7

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

Valid for JX70 for Model only

1шт.

8

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

Valid for JX70 for Model only

1шт.

9

14197991

NUT,M8 x 1.25, Cage

2шт.

Valid for JX70 for Model only

1шт.

10

5090988

SPRING,12mm OD x 50mm

2шт.

11

5092628

SPACER

1шт.

Valid for JX70 for Model only

1шт.

12

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

2шт.

Valid for JX70 for Model only

1шт.

12

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

13

5094521

SUPPORT

1шт.

Valid for JX70 for Model only

1шт.

14

84209088

SUPPORT

1шт.

Valid for JX90, JX95 for Models only

1шт.

15

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

Valid for JX90, JX95 for Models only

1шт.

16

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

Valid for JX90, JX95 for Models only

1шт.

17

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

2шт.

Valid for JX90, JX95 for Models only

1шт.

Выбрано товаров: 31
