Запчасти Case IH JX90 (1.17.5[01A]) - RADIATOR - SEALS - D6489 (02) - ENGINE EQUIPMENT

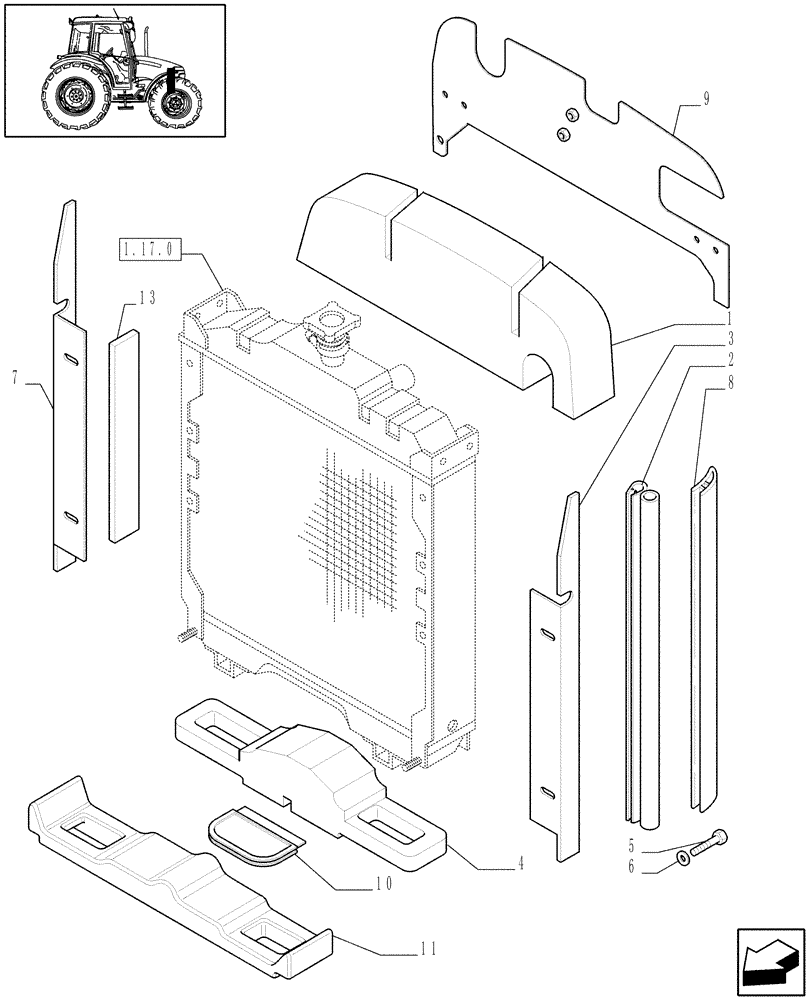

Схема запчастей Case IH JX90 - (1.17.5[01A]) - RADIATOR - SEALS - D6489 (02) - ENGINE EQUIPMENT
10
6
11
1
9
8
13
5
3
1.17.0
2
7
4

Артикул

Название

Примечание

Количество

1

5092831

INSULATOR

JX60, JX80

1шт.

1

5095187

INSULATOR

JX70

1шт.

2

84212008

SEAL

JX90, JX95

1шт.

3

84216519

SUPPORT

LH, JX60, JX70, JX80

1шт.

4

5097765

FOAM INSULATION

, Serial Range: -C6668

1шт.

5

10977521

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

JX60, JX70, JX80

2шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

JX90, JX95

2шт.

6

10519301

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

JX60, JX70, JX80

2шт.

6

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

JX90, JX95

2шт.

7

84216521

SUPPORT

RH, JX60, JX70, JX80

1шт.

8

84213931

RUBBER SEAL,805mm L

JX90, JX95

1шт.

9

84210783

PLATE

JX90, JX95

1шт.

10

84137254

GASKET

JX90, JX95

1шт.

11

84216870

INSULATOR,10mm W x 554mm L x 42mm Thk

, Start Serial: D6668

1шт.

12

84216833

GASKET

, Start Serial: D6668

1шт.

Art not Available

1шт.

13

84216837

GASKET

, Start Serial: D6668

1шт.

Выбрано товаров: 17
