Запчасти Case IH JX90 (1.17.5[01]) - RADIATOR - SEALS - C6489 (02) - ENGINE EQUIPMENT

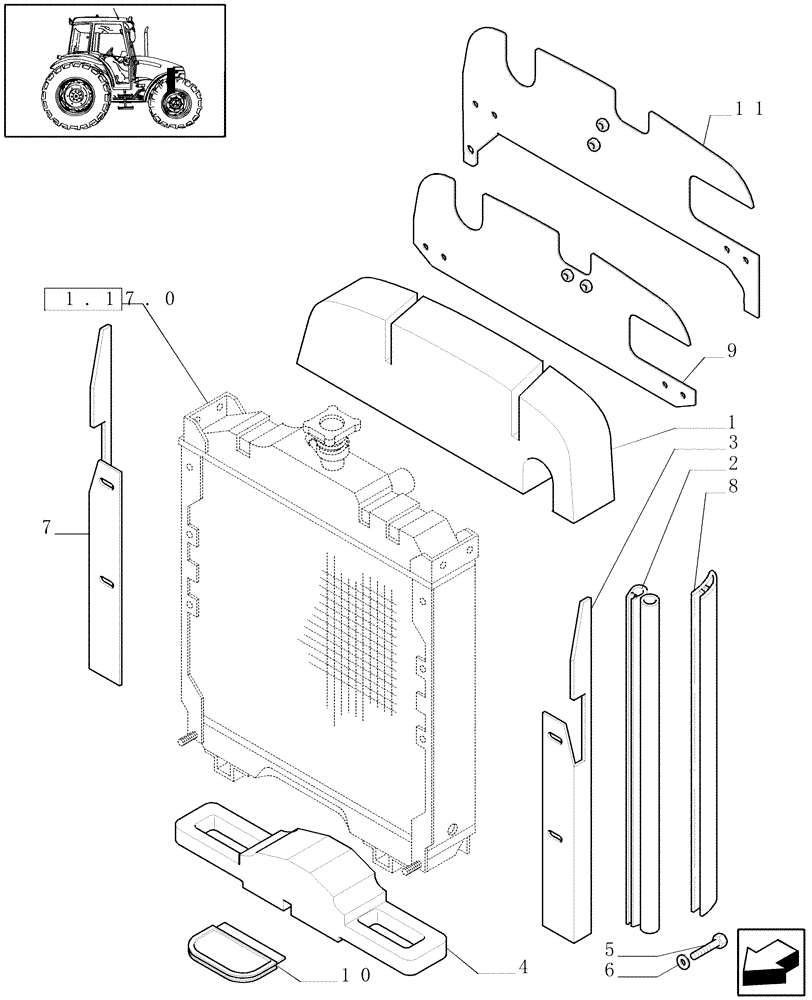

Схема запчастей Case IH JX90 - (1.17.5[01]) - RADIATOR - SEALS - C6489 (02) - ENGINE EQUIPMENT
10
1.17.0
4
3
8
1
2
7
9
11
6
5

Артикул

Название

Примечание

Количество

1

5092831

INSULATOR

JX60, JX80

1шт.

1

5095187

INSULATOR

JX70

1шт.

2

5093644

RUBBER SEAL,559mm L

JX60, JX70, JX80, Serial Range: -C6355

1шт.

2

84212008

SEAL

JX90, JX95, Start Serial: D6355

1шт.

3

5093620

SUPPORT

LH

1шт.

4

5097765

FOAM INSULATION

1шт.

5

10977521

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

2шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

JX90, JX95, Start Serial: D6355

2шт.

6

10519301

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

2шт.

6

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

JX90, JX95, Start Serial: D6355

2шт.

7

5093621

SUPPORT

RH

1шт.

8

87680402

SEAL

JX90, JX95, Serial Range: -C6355

1шт.

8

84213931

RUBBER SEAL,805mm L

JX90, JX95, Start Serial: D6355

1шт.

9

87713563

PLATE

JX90, JX95, Serial Range: -C6355

1шт.

10

84137254

GASKET

JX90, JX95

1шт.

11

84210783

PLATE

JX90, JX95, Start Serial: D6355

1шт.

Выбрано товаров: 16
