Запчасти Case IH JX90 (1.17.1) - RADIATOR HOSES (02) - ENGINE EQUIPMENT

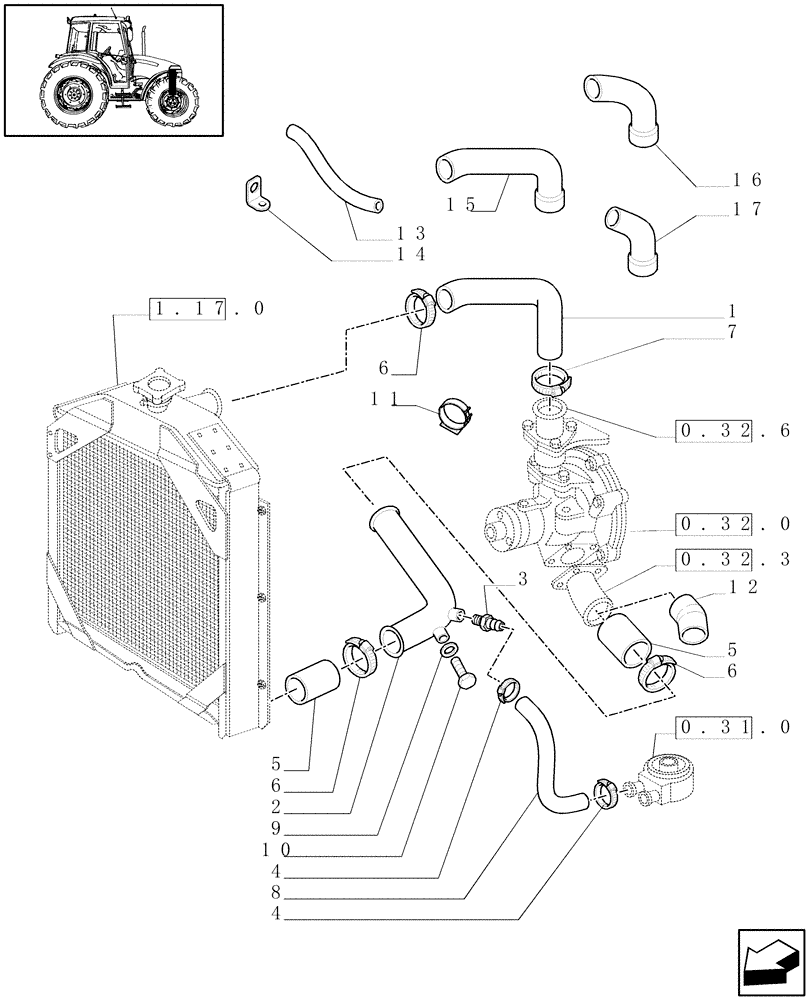

Схема запчастей Case IH JX90 - (1.17.1) - RADIATOR HOSES (02) - ENGINE EQUIPMENT
3
16
2
8
15
17
5
1
13
6
6
4
4
1.17.0
11
5
12
10
9
7
6
14
0.31.0
0.32.6
0.32.0
0.32.3

Артикул

Название

Примечание

Количество

1

5104825

HOSE,45.00 mm ID x 110.00 mm

JX60, JX70, JX80, Serial Range: -C6050

1шт.

1

5090562

LARGE HOSE,38.00 mm ID, 45.00 mm ID x 121.00 mm

HOSE,LARGE JX90, JX95, Serial Range: -C5834

1шт.

2

5117300

TUBE

JX60, JX80

1шт.

2

5091445

TUBE

JX70, JX90, JX95, Serial Range: -C6045

1шт.

2

5083100

TUBE

JX70, JX90, JX95, Start Serial: D6045

1шт.

3

5094423

HYD CONNECTOR

JX70, JX90, JX95

1шт.

4

5096508

CLAMP

JX70

2шт.

5

5096235

RADIATOR HOSE,105.00 mm

, Serial Range: -C6045

2шт.

5

5083101

RADIATOR HOSE

, Start Serial: D6045

1шт.

6

5097539

COLLAR,32mm - 50mm

4шт.

7

5097540

COLLAR,40mm - 60mm

2шт.

8

5143826

HOSE,15.90 mm ID x 23.00 mm

JX70, Serial Range: -C5640

1шт.

8

5104825

HOSE,45.00 mm ID x 110.00 mm

JX60, JX80

1шт.

8

5098180

HOSE,15.9mm ID x 530mm L

L=580mm, JX90, JX95, Start Serial: D5640

1шт.

8

5098179

HOSE

L=420mm, JX70, Start Serial: D5640

1шт.

9

4858609

WASHER,Brass

1шт.

10

10300714

PLUG,M16 x 1.5 x 14

L/Cab

1шт.

11

87680354

COLLAR

, Start Serial: D5757

1шт.

12

5083099

RADIATOR HOSE

, Start Serial: D6045

1шт.

13

5090195

FUEL HOSE

, Start Serial: D6050

1шт.

14

87714778

BRACKET

L=1000, JX80, Start Serial: D6050

2шт.

15

87474901

RADIATOR HOSE,38.00 mm ID, 45.00 mm ID x 129.50 mm

JX60, JX70, JX80, Start Serial: D6050

1шт.

16

87698631

RADIATOR HOSE,38.00 mm ID, 45.00 mm ID x 104.00 mm

, Serial Range: D5834-C6293

1шт.

17

84175932

RADIATOR HOSE,38.00 mm ID, 45.00 mm ID x 136.00 mm

, Start Serial: D6293

1шт.

Выбрано товаров: 24
