Запчасти Case IH JX90 (1.17.0[03A]) - RADIATOR - CAP AND BRACKET - D5834 (02) - ENGINE EQUIPMENT

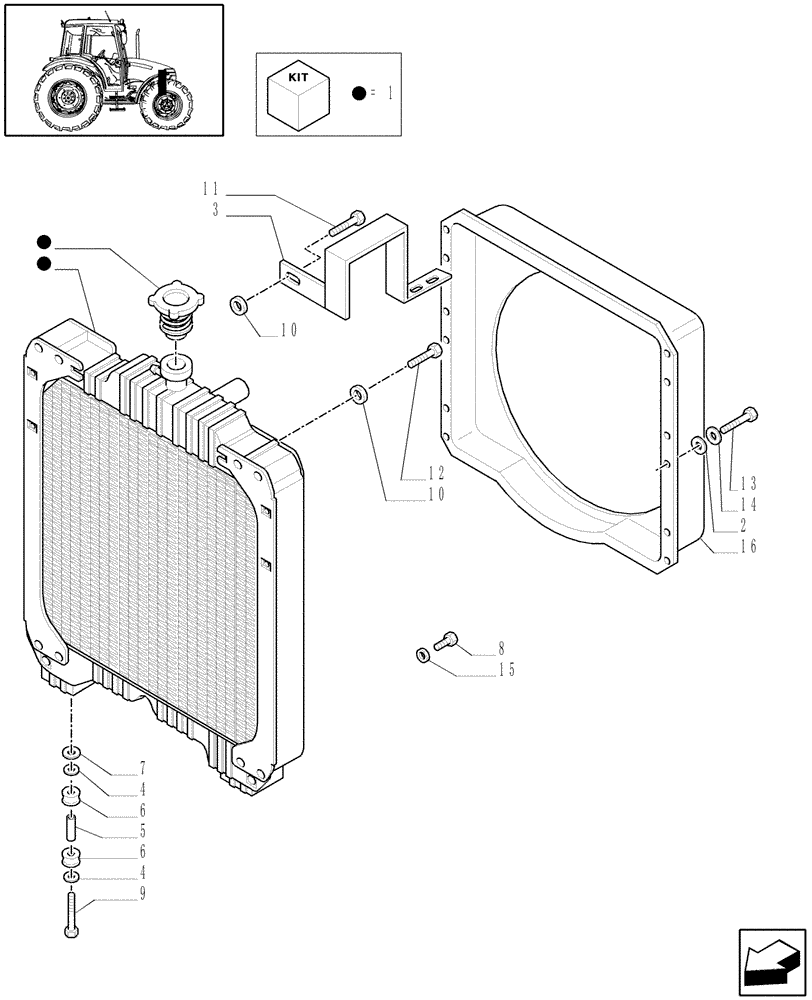

Схема запчастей Case IH JX90 - (1.17.0[03A]) - RADIATOR - CAP AND BRACKET - D5834 (02) - ENGINE EQUIPMENT
1
10
4
9
15
11
5
8
14
16
6
12
1
1
2
7
3
4
13
10
6

Артикул

Название

Примечание

Количество

1

5099122

RADIATOR

Assy

1шт.

See Also SRG 1.17.6 for Over Heating Engine Kit

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

3

87721174

SUPPORT

1шт.

4

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

4шт.

5

5102703

SPACER,11mm ID x 15mm OD x 63mm L

2шт.

6

5108225

RUBBER MOUNTING

4шт.

7

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

2шт.

8

13274211

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd

2шт.

9

15971721

SCREW,Hex, M10 x 1.25 x 95mm, Cl 8.8

2шт.

10

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

11

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

12

15697804

SELF-TAP SCREW,Hex Wshr Hd, M6 x 20mm

1шт.

13

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.

14

10571579

LOCK WASHER,M6

6шт.

15

12643704

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

2шт.

16

5090561

GUARD

1шт.

Выбрано товаров: 17
