(1.14.6) - FUEL TANK - PIPES

Запчасти Case IH JX90 (1.14.6) - FUEL TANK - PIPES (02) - ENGINE EQUIPMENT

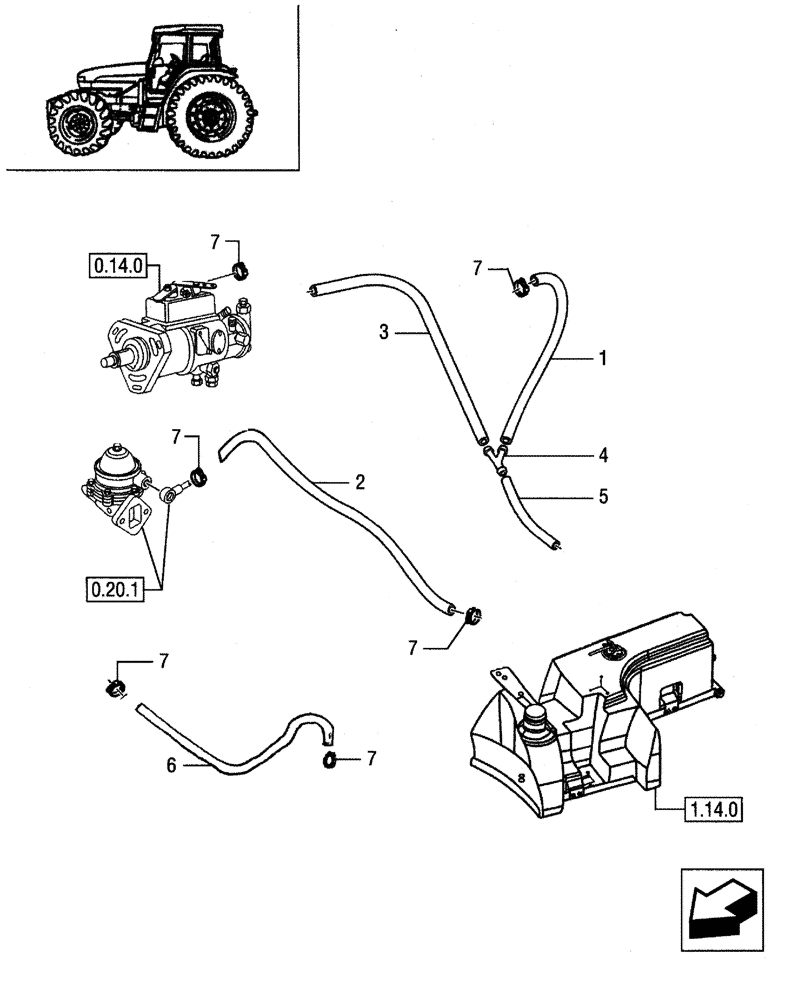

Схема запчастей Case IH JX90 - (1.14.6) - FUEL TANK - PIPES (02) - ENGINE EQUIPMENT
1140
7
6
2
1
4
3
7
7
7
7
5
7
0201
0.20.1
0140
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5094401

FUEL HOSE

Fuel Tank Return, 1560 mm

1шт.

2

5094403

FUEL HOSE

Fuel Tank-Fuel Pump Suction, 1245 mm, JX95

1шт.

3

5090436

FUEL HOSE,7.00 mm ID x 1245.00 mm

Injection Pump "T"

1шт.

4

5090438

HYD CONNECTOR

Connection Hose Btwn."T" Connectors, 120 mm

1шт.

5

5094400

FUEL HOSE

1шт.

6

5094402

FUEL HOSE

Fuel Tank Breather, 450 mm

1шт.

7

10186590

CLAMP,11mm - 13mm

10шт.
