Запчасти Case IH JX90 (1.10.0[02]) - ACCELERATOR CONTROL - SUPPORT AND FLEXIBLE CONTROL (02) - ENGINE EQUIPMENT

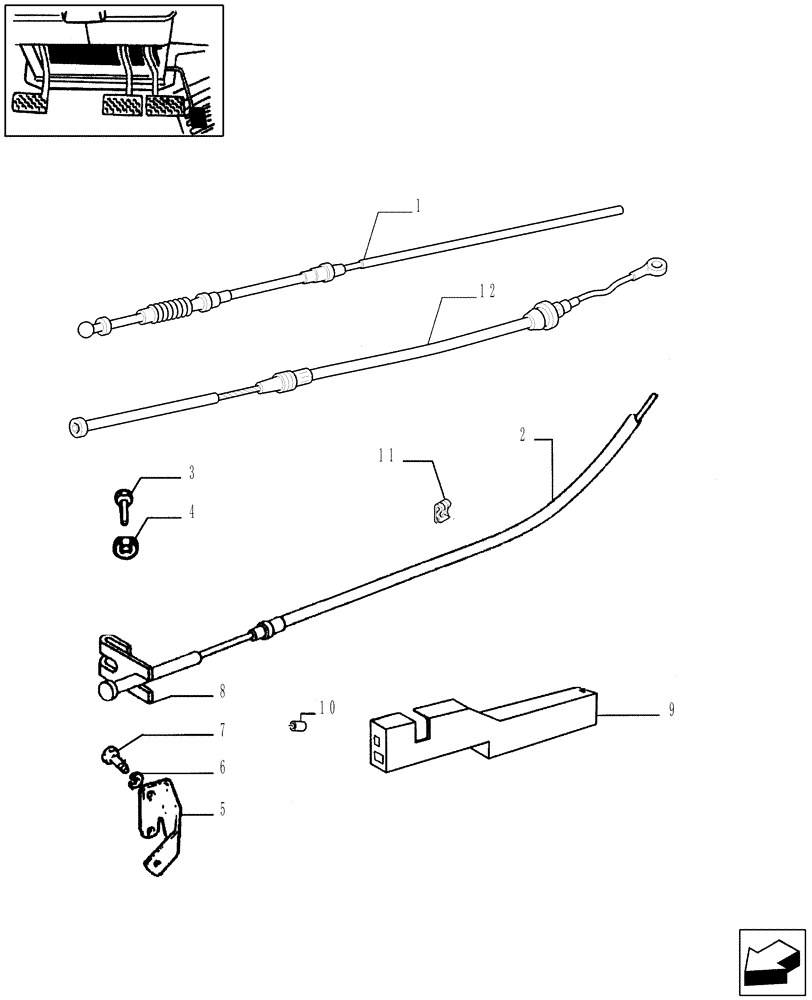

Схема запчастей Case IH JX90 - (1.10.0[02]) - ACCELERATOR CONTROL - SUPPORT AND FLEXIBLE CONTROL (02) - ENGINE EQUIPMENT
1
4
11
2
7
9
6
12
8
10
5
3
1

Артикул

Название

Примечание

Количество

1

5092568

CABLE,1345mm L

Foot Throttle Push-Pulll, 1345mm l.

1шт.

2

5092569

CABLE

Hand Throttle Push-Pull, Serial Range: -C5459

1шт.

3

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

1шт.

4

15896211

NUT,M6, Cl 8

1шт.

5

5127686

LEVER

1шт.

6

10571579

LOCK WASHER,M6

2шт.

7

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

8

5110214

BRACKET

1шт.

9

5092241

SUPPORT

1шт.

10

5092579

SPACER,7mm ID x 12mm OD x 8mm L

JX95

1шт.

11

11064176

CLIP,M10 x 8mm

M10 x 8 x 1.05

1шт.

12

87557539

CABLE,1502mm L

, Start Serial: D5459

1шт.

Выбрано товаров: 12
