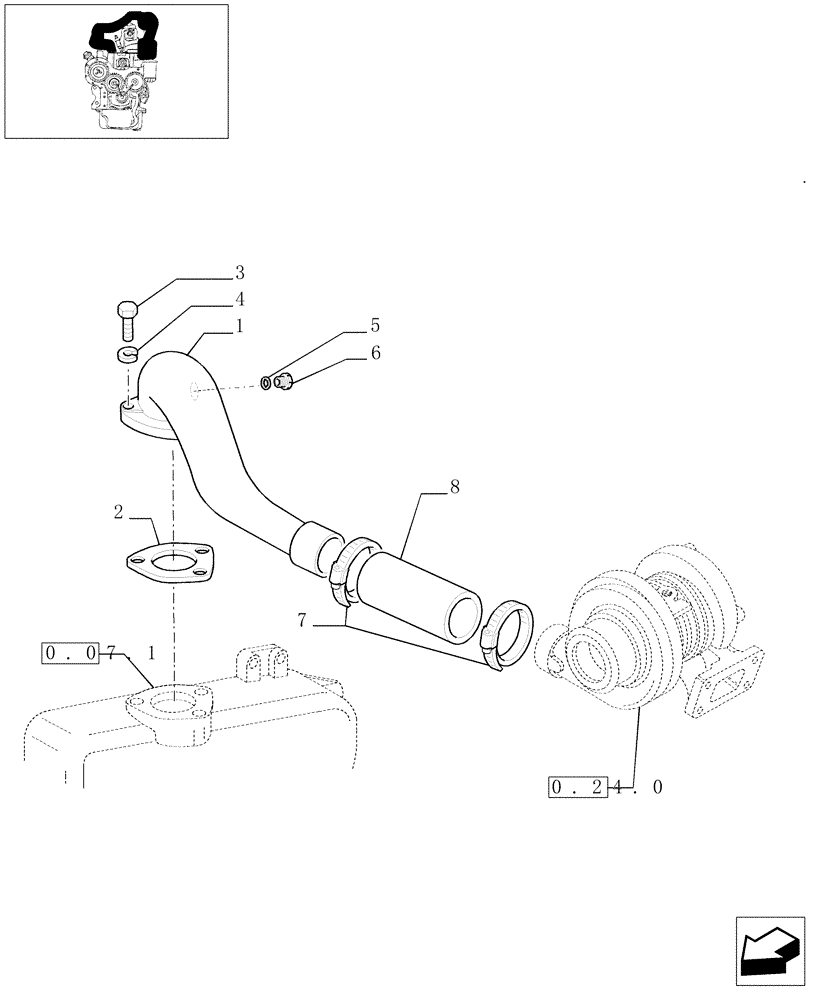

Запчасти Case IH JX90 (0.24.1) - LINES (01) - ENGINE

1

5096546

PIPE

1шт.

2

98418533

GASKET,0.8mm Thk

1шт.

3

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

3шт.

4

14499521

WASHER,10.5mm ID x 18mm OD x 2mm Thk

M10 x 18

3шт.

5

10263360

SEAL,20.3mm ID x 26mm OD x 1mm Thk

1шт.

6

10305071

PLUG

M20 x 1.5

1шт.

7

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

2шт.

8

99449437

HOSE

1шт.
