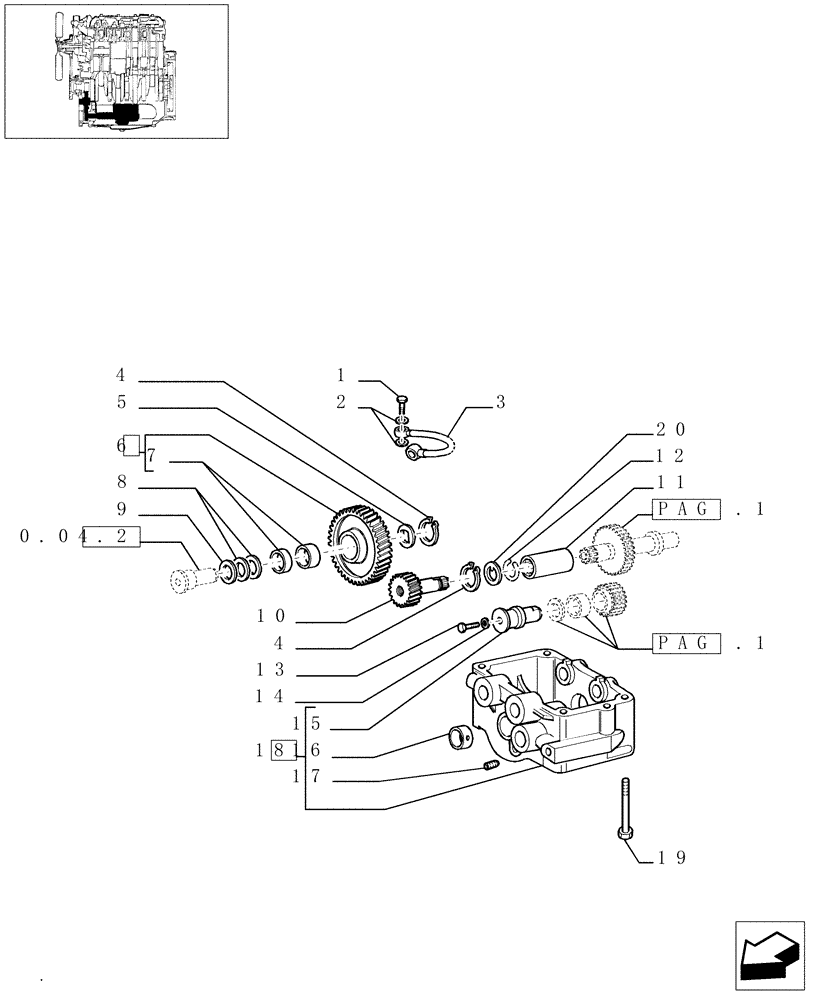

Запчасти Case IH JX90 (0.10.5[02]) - DYNAMIC BALANCER, GEARS & SHAFTS (01) - ENGINE

1

11903817

BANJO BOLT

10 x 1.25 x 19

2шт.

2

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

D=8X12X1.5mm

4шт.

3

4812938

RIGID TUBE

1шт.

4

4600329

SNAP RING,29.60mm ID

2шт.

5

4667450

WASHER,32.2mm ID x 50mm OD x 3mm Thk

1шт.

6

4812932

GEAR

1шт.

7

4812465

BUSHING

2шт.

8

4834331

WASHER

2шт.

9

4600386

WASHER,32.2mm ID x 50mm OD x 3mm Thk

1шт.

10

98418381

GEAR

JX90, JX95

1шт.

10

4770244

GEAR

JX80

1шт.

11

98415087

UNIVERSAL JOINT

JX90, JX95

1шт.

11

4605612

UNIVERSAL JOINT

JX80

1шт.

12

98415095

LOCKING RING

JX90, JX95

1шт.

13

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

1шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

15

4788666

PIN,30mm OD x 61.1mm L

1шт.

16

4670935

BUSHING,31.48mm ID x 36.02mm OD x 16.7mm L

1шт.

17

99434231

PLUG

M10 x 1.25

6шт.

18

98415171

HOUSING

- ASSY JX90, JX95

1шт.

18

4792111

HOUSING

- ASSY JX80

1шт.

19

4778867

BOLT,M12 x 1.25 x 114.50mm

M12 x 114.5

4шт.

20

4668200

THRUST WASHER

1шт.
