(1.98.3) - LICENSE PLATE SUPPORT

Запчасти Case IH JX90 (1.98.3) - LICENSE PLATE SUPPORT (10) - OPERATORS PLATFORM/CAB

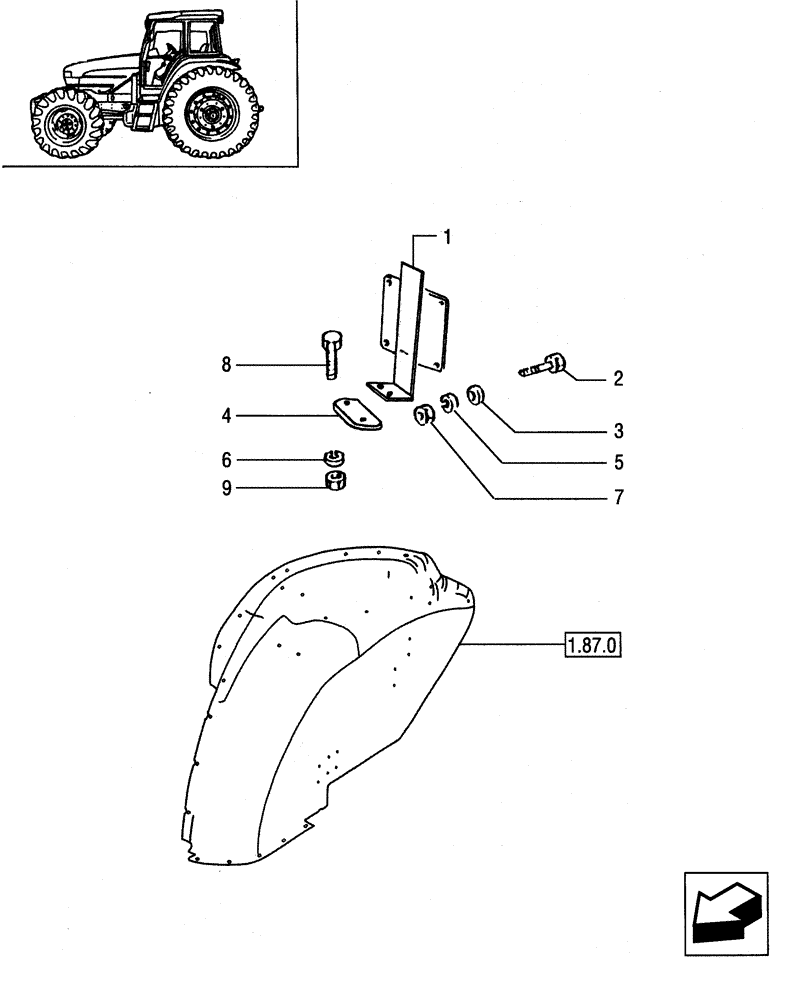

Схема запчастей Case IH JX90 - (1.98.3) - LICENSE PLATE SUPPORT (10) - OPERATORS PLATFORM/CAB
8
1.87.0
2
4
5
1
3
7
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5089432

SUPPORT

Plate Support Complete

1шт.

2

10375011

SCREW,Sl Pan Hd, M4 x 14mm

4шт.

3

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

4

5089433

PAD

1шт.

5

10571379

LOCK WASHER,M4

4шт.

6

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

7

10794011

NUT,M4, Cl 8

4шт.

8

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

9

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.
