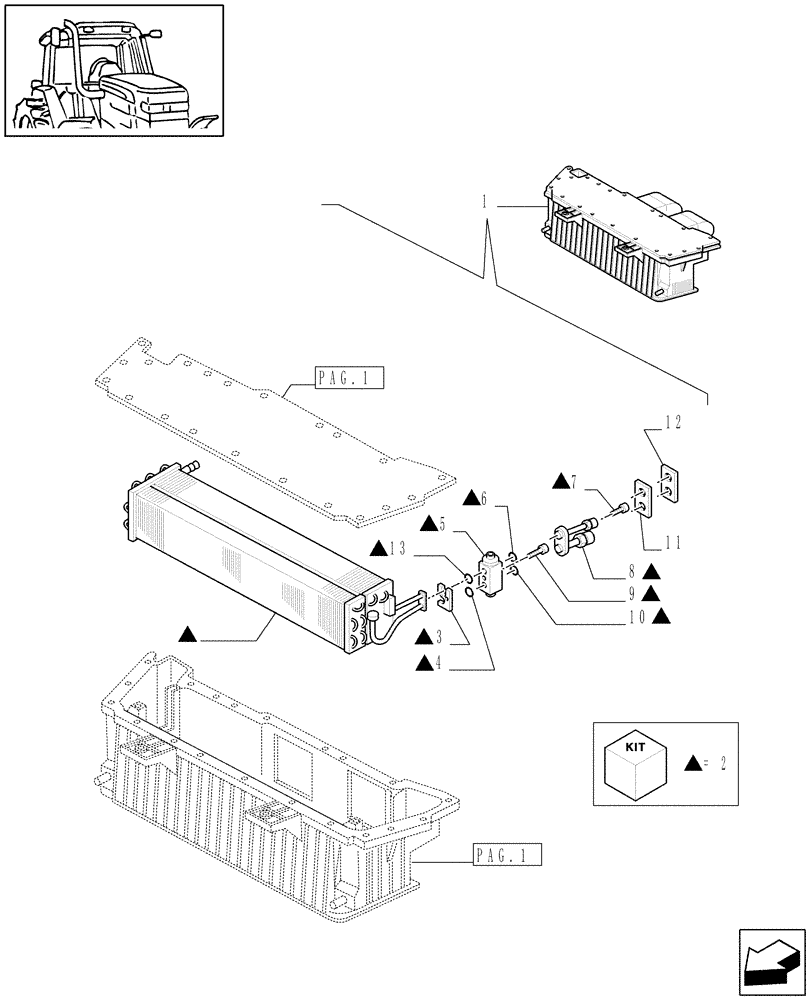

Запчасти Case IH JX90 (1.94.2/01B[02]) - (VAR.641-958) AIR CONDITIONING - RELEVANT PARTS (10) - OPERATORS PLATFORM/CAB

1

82034850

AIR CONDITIONER

& HEATER

1шт.

2

82034855

EVAPORATOR

& Heater Assy

1шт.

3

81874723

PLATE

1шт.

4

82000792

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

5

82034858

VALVE

Expansion

1шт.

Has 4 different size ports.

1шт.

6

82000791

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

7

81874722

HEX SOC SCREW,M6 x 15mm

1шт.

8

82009113

TUBE,60, 26 mm Length

Evaporator and Heat Exchanger

1шт.

9

81874721

HEX SOC SCREW,M5 x 39.5mm

2шт.

10

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

5/16" ID x .070" Thk

1шт.

11

82009242

GASKET

1шт.

12

81872757

SEAL

1шт.

13

82000789

O-RING,1.85mm Thk x 17.6mm ID

1шт.
