(1.94.2[05]) - (VAR.641-958) AIR CONDITIONING - SWITCH AND HOSES

Запчасти Case IH JX90 (1.94.2[05]) - (VAR.641-958) AIR CONDITIONING - SWITCH AND HOSES (10) - OPERATORS PLATFORM/CAB

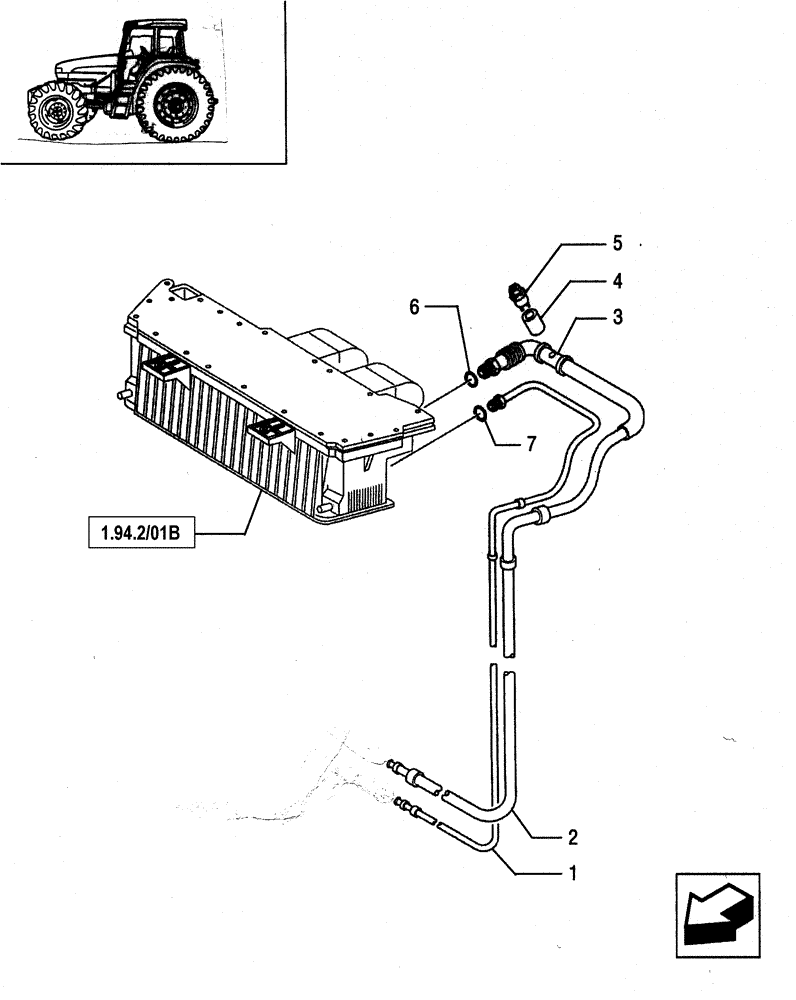

Схема запчастей Case IH JX90 - (1.94.2[05]) - (VAR.641-958) AIR CONDITIONING - SWITCH AND HOSES (10) - OPERATORS PLATFORM/CAB
2
5
4
6
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5091888

HOSE

& Hose, Serial Range: Dryer-Evaporator

1шт.

2

5091891

A/C HOSE

Hose, Serial Range: Evaporator-Compressor

1шт.

3

82002607

FOAM INSULATION

1шт.

4

81871638

FOAM INSULATION

1шт.

5

87356362

SWITCH ASSY

SWITCH ASY-A/C CLUTCH CYLINDER PRESS

1шт.

6

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

7

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

5/16" ID x .070" Thk

1шт.
