Запчасти Case IH JX90 (1.93.3/06[02]) - (VAR.963) DELUXE FABRIC SEAT WITH BELTS, SUPPORT AND SAFETY SWITCH (10) - OPERATORS PLATFORM/CAB

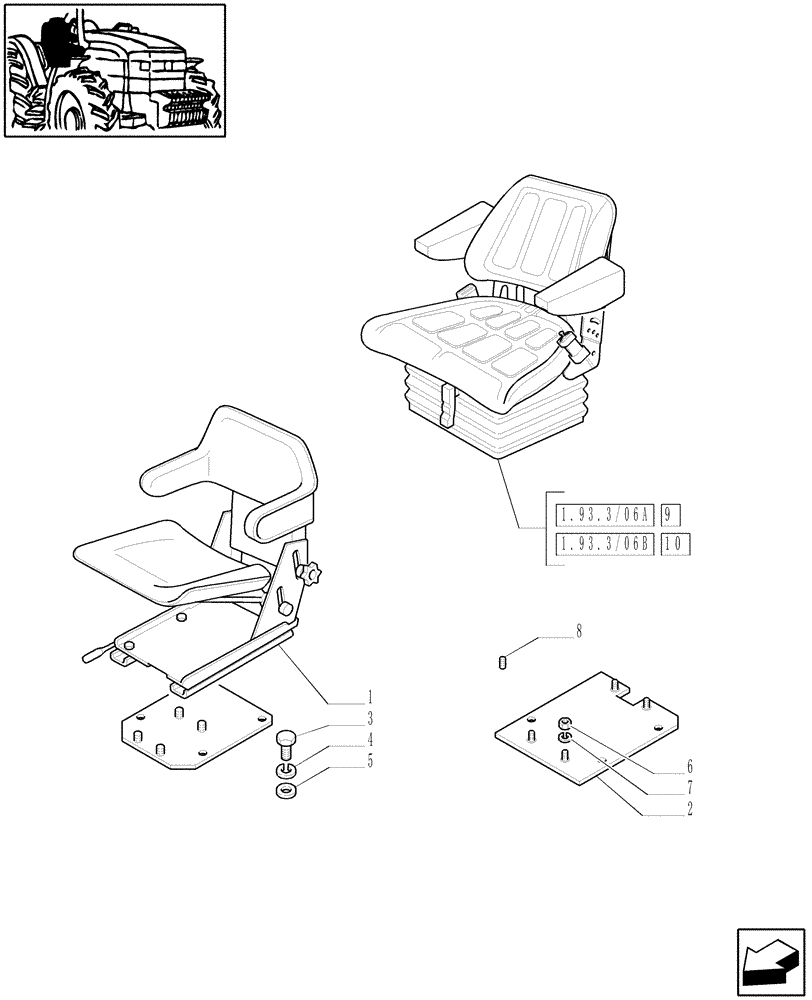

Схема запчастей Case IH JX90 - (1.93.3/06[02]) - (VAR.963) DELUXE FABRIC SEAT WITH BELTS, SUPPORT AND SAFETY SWITCH (10) - OPERATORS PLATFORM/CAB
9
7
3
4
10
1.93.3/06a
8
1.93.3/06b
1
6
5
2

Артикул

Название

Примечание

Количество

1

5091999

DRIVER SEAT

, Serial Range: -C5511

1шт.

2

5090713

SUPPORT

1шт.

3

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

5

14497501

WASHER

8 x 17 x 1.6

4шт.

6

12164711

NUT,M10 x 1.25, Cl 8

4шт.

7

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

8

5089481

CAP,17mm OD

4шт.

9

87586661

DRIVER SEAT

, Serial Range: D5511-C5652

1шт.

10

87634294

DRIVER SEAT

Assy, Start Serial: D5652

1шт.

Выбрано товаров: 10
