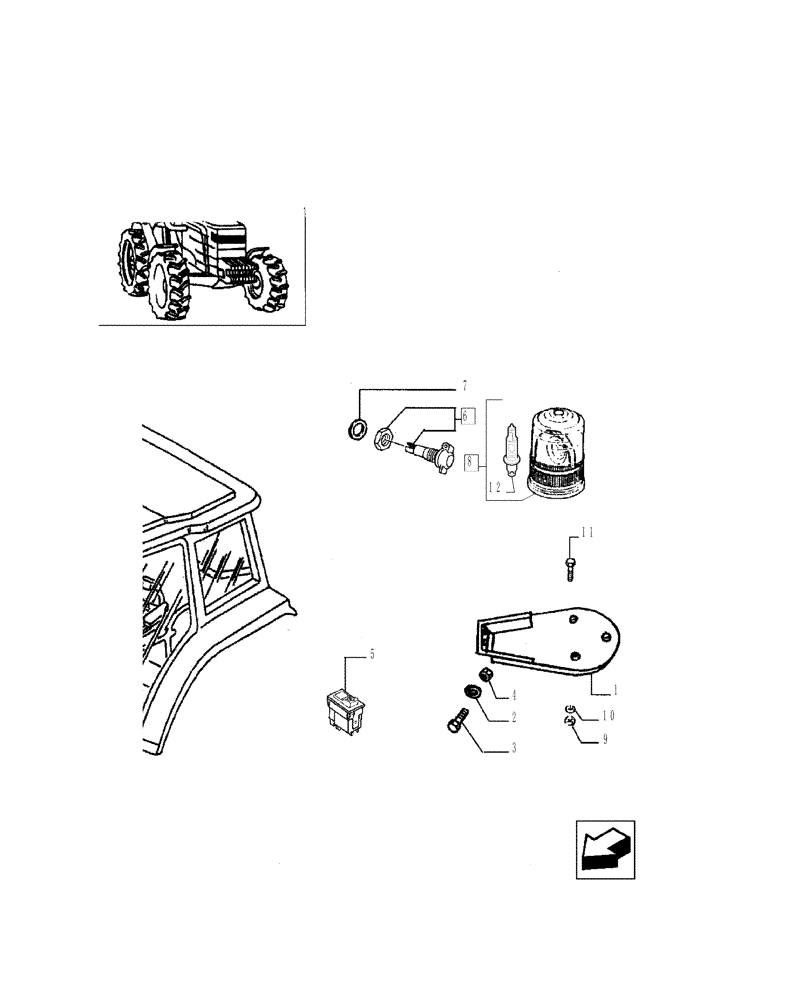

Запчасти Case IH JX90 (1.92.9[03]) - ROTATING LIGHT - SUPPORT (10) - OPERATORS PLATFORM/CAB

1

5089437

SUPPORT

1шт.

2

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

3

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

5

5172070

BEACON SWITCH

Rotary Beacon

1шт.

6

82002966

POWER SOCKET,M18 x 1

1шт.

7

80128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

5092364

BEACON,12V, 55W, Amber

1шт.

9

15896211

NUT,M6, Cl 8

3шт.

10

10571579

LOCK WASHER,M6

3шт.

11

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

3шт.

12

86616248

BULB,H1, 12V, 55W

1шт.
