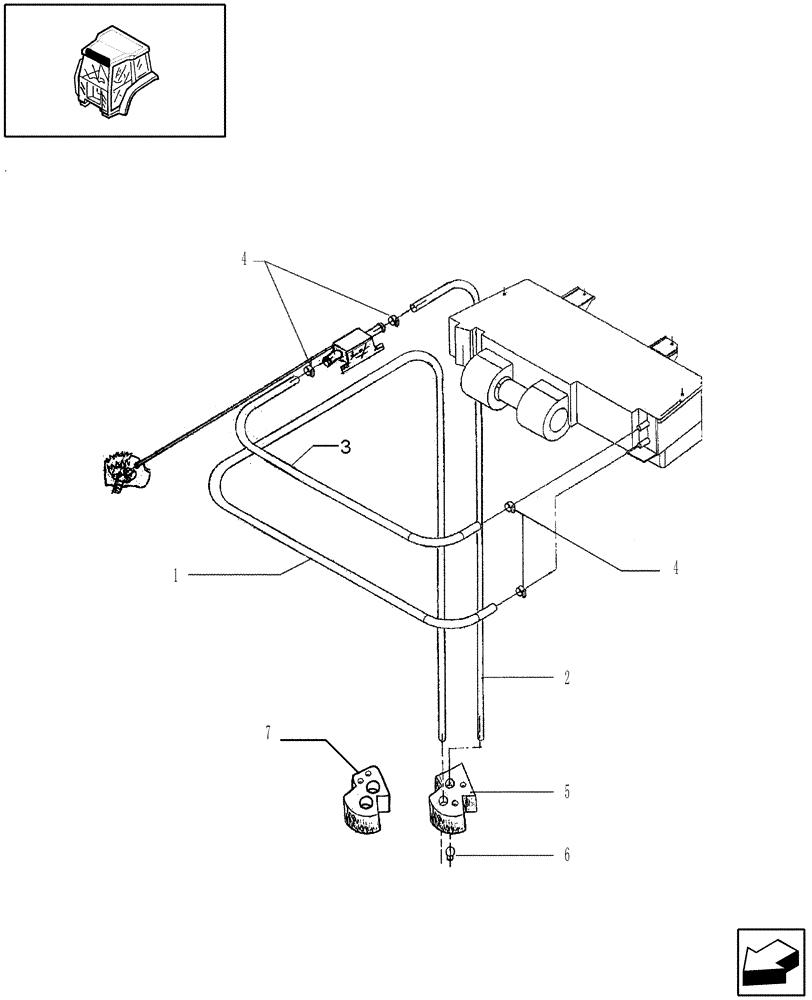

Запчасти Case IH JX90 (1.92.0[68]) - HEATING SYSTEM - PIPES (10) - OPERATORS PLATFORM/CAB

1

5091895

HEATER HOSE,16.00 mm ID x 3230.00 mm

Water Pump to Heater Valve

1шт.

1

5097243

HOSE,16mm ID x 3195mm L

Heater

1шт.

JX95 only

1шт.

2

5091896

HEATER HOSE,16mm ID x 1080mm L

Heater Valve to Heater

1шт.

3

5091897

FLEXIBLE HOSE,16.00 mm ID x 3990.00 mm

Heater to Lower Radiator Hose

1шт.

3

5097244

HEATER HOSE,16.00 mm ID x 4045.00 mm

Heater

1шт.

JX95 only

1шт.

4

5085776

HOSE CLAMP

22 x 36

4шт.

4

5085797

CLAMP

1шт.

JX95 only

1шт.

5

82001902

FOAM INSULATION

, Serial Range: -C5316

1шт.

6

5094423

HYD CONNECTOR

1шт.

7

5097321

FOAM INSULATION

, Start Serial: D5316

1шт.
