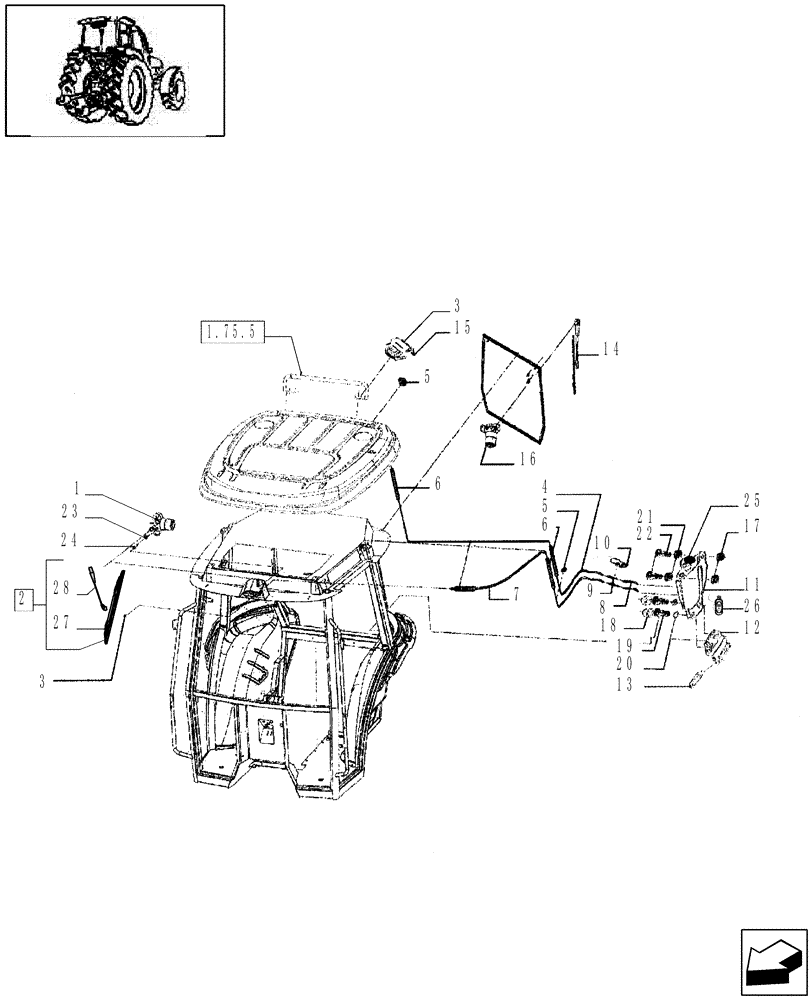

Запчасти Case IH JX90 (1.92.0[52]) - WINDSCREEN WIPER AND REAR-WINDOW WIPER (10) - OPERATORS PLATFORM/CAB

1

5092906

WIPER MOTOR

, Serial Range: -C5932

1шт.

1

87474388

WIPER MOTOR

, Start Serial: D5932

1шт.

2

5092905

WIPER ARM

ASSY

1шт.

3

5092907

NOZZLE

1шт.

4

5093390

HOSE,4mm ID x 3320mm L

1шт.

5

5092913

GROMMET

1шт.

6

5094134

HOSE,25mm ID x 165mm L

2шт.

7

5092908

TUBE

1шт.

8

5092910

FITTING

1шт.

9

5092909

HOSE,4mm ID x 200mm L

1шт.

10

5094133

FLEXIBLE SHEATH

1шт.

11

5096076

RESERVOIR, WINDSHIEL

Double Outlet

1шт.

12

5094175

SUPPORT

1шт.

13

5094138

RUBBER SEAL,171mm L

1шт.

14

5093389

KIT

Rear Wiper

1шт.

15

5094345

SUPPORT

1шт.

16

5093388

WIPER MOTOR,12V

REAR

1шт.

17

5093041

RUBBER BUSHING,9mm ID x 20mm OD x 6.8mm L

2шт.

18

5089481

CAP,17mm OD

2шт.

19

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

20

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

21

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

22

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 1.25 x 35, 8.8

2шт.

23

10571579

LOCK WASHER,M6

1шт.

24

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.

25

87302624

CAP

1шт.

26

87309569

PUMP

2шт.

27

87754206

WIPER BLADE

1шт.

28

87754207

WIPER ARM

1шт.
