(1.92.0[50]) - CAB - TRAILER BRAKE LEVER - SUPPORT

Запчасти Case IH JX90 (1.92.0[50]) - CAB - TRAILER BRAKE LEVER - SUPPORT (10) - OPERATORS PLATFORM/CAB

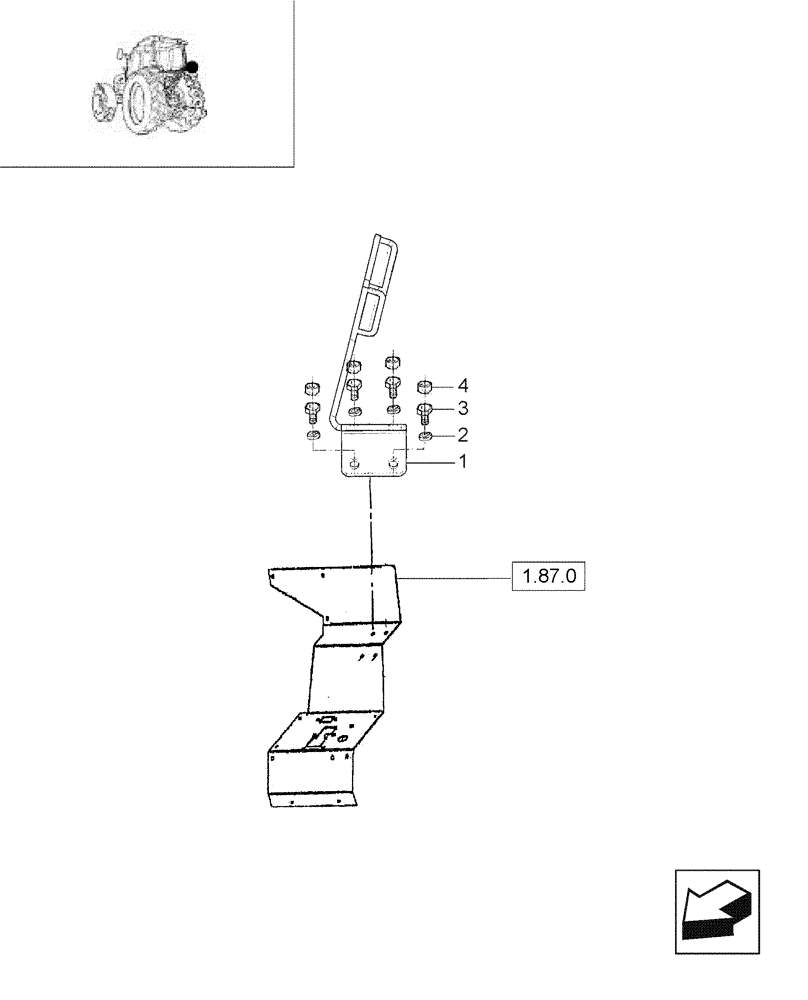

Схема запчастей Case IH JX90 - (1.92.0[50]) - CAB - TRAILER BRAKE LEVER - SUPPORT (10) - OPERATORS PLATFORM/CAB
3
1.86.2
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5093598

SUPPORT

1шт.

2

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

3

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

5089481

CAP,17mm OD

4шт.
