(1.92.0[24]) - CAB - LIGHTING DEVICES - FRONT AND REAR LIGHTS

Запчасти Case IH JX90 (1.92.0[24]) - CAB - LIGHTING DEVICES - FRONT AND REAR LIGHTS (10) - OPERATORS PLATFORM/CAB

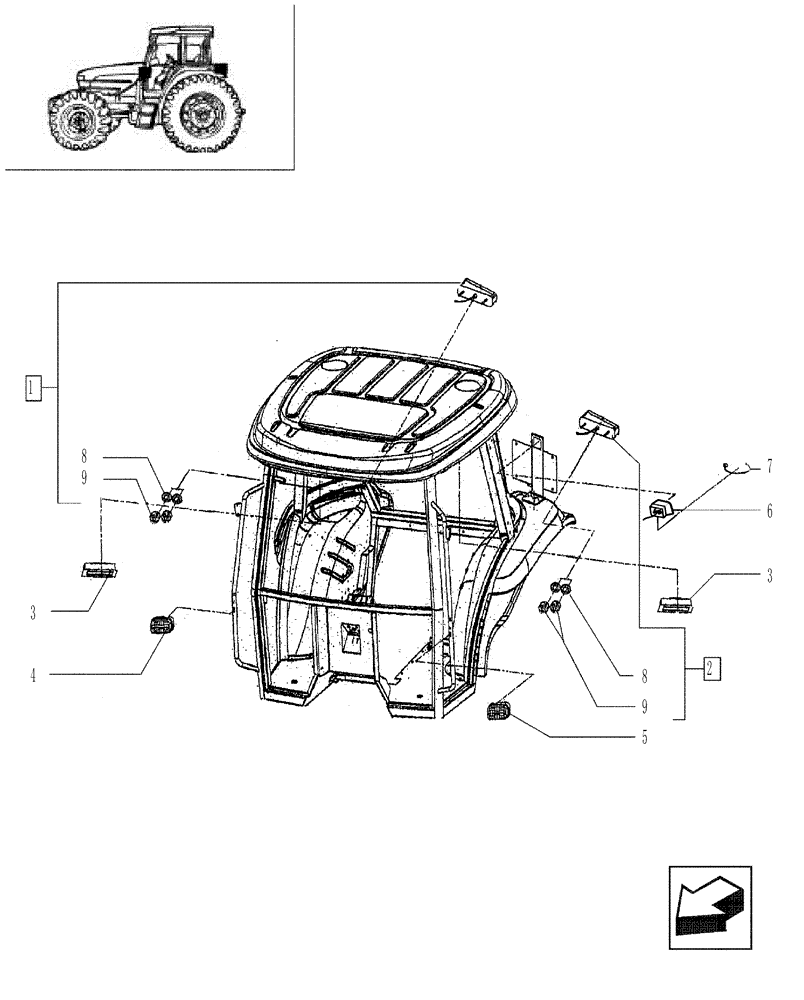

Схема запчастей Case IH JX90 - (1.92.0[24]) - CAB - LIGHTING DEVICES - FRONT AND REAR LIGHTS (10) - OPERATORS PLATFORM/CAB
7
5
8
8
3
4
6
9
3
1
9
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5091434

TAIL LAMP,12V, 21W, Amber/Red

Rear, RH

1шт.

2

5091429

TAIL LAMP,12V, 21W, Amber/Red

Rear, LH

1шт.

3

5089561

CEILING LAMP

2шт.

4

5089580

INDICATOR LIGHT

RH

1шт.

5

5089579

INDICATOR LIGHT

LH

1шт.

6

5094438

NUMBER PLATE LAMP

1шт.

7

5112712

COLLAR,M4.8 x 283

1шт.

8

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

2шт.

9

15896211

NUT,M6, Cl 8

2шт.
