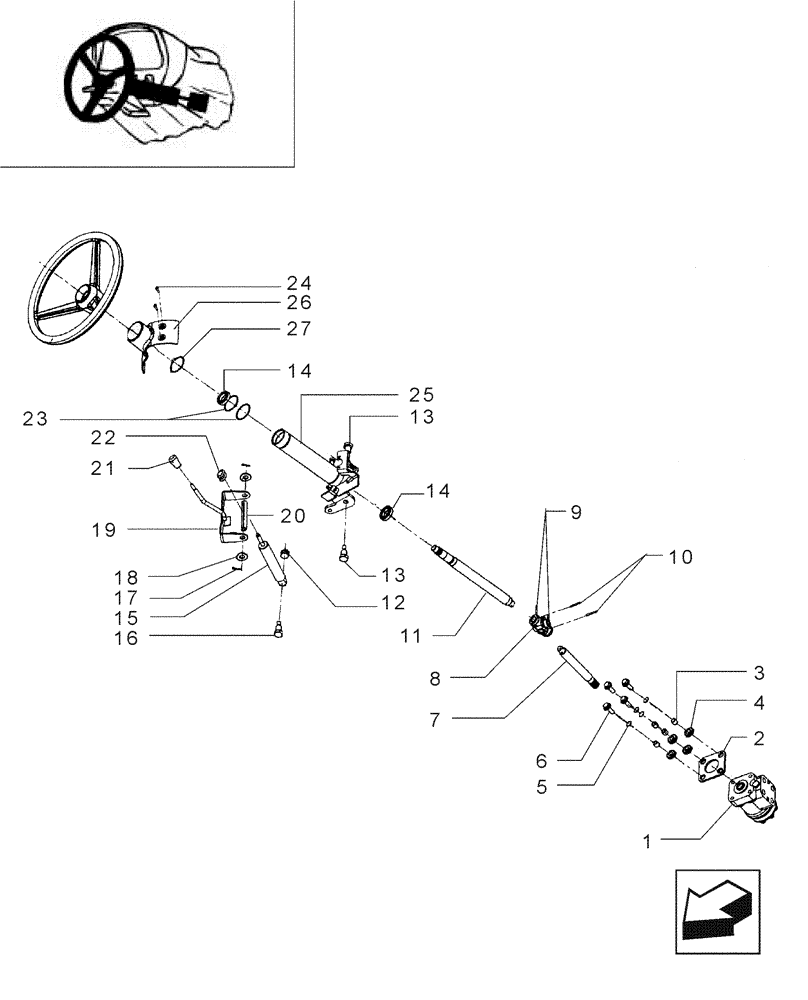

Запчасти Case IH JX90 (1.92.0[08]) - CAB - POWER STEERING - COMPONENT PARTS (10) - OPERATORS PLATFORM/CAB

1

5094204

HYDRAULIC STEERING

4WD

1шт.

Front axle w/2 cylinders

1шт.

1

5164277R

REMAN-HYD VALVE

Reman for New PN 5094204

1шт.

1

5164277C

CORE-VALVE HYD

Return Number

1шт.

1

5094306

HYDRAULIC STEERING

4WD

1шт.

Front axle w/1 cylinder

1шт.

1

5094308

HYDRAULIC STEERING

2WD

1шт.

2

5197927

SHIM,45mm ID x 82mm OD x 5mm Thk

1шт.

3

5091784

SPACER,10.1mm ID x 14mm OD x 12mm L

4шт.

4

5091785

BUSHING,14mm ID x 20mm OD x 8mm L

4шт.

5

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

6

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

7

5097930

SHAFT

, Start Serial: D5383

1шт.

7

5089757

PIN

, Serial Range: -C5383

1шт.

8

5097932

UNIVERSAL JOINT

, Start Serial: D5383

1шт.

8

5090676

KIT

, Serial Range: -C5383

1шт.

9

13910570

ROLL PIN,M6 x 36, Coiled

, Start Serial: D5383

2шт.

9

14164479

COTTER PIN,M4 x 32, Slotted

, Serial Range: -C5383

2шт.

10

13905370

PIN,M4 x 36

, Serial Range: -C5383

2шт.

11

5097931

SHAFT

, Start Serial: D5383

1шт.

11

5089586

SHAFT

, Serial Range: -C5383

1шт.

12

5089756

SLEEVE,13mm ID x 17mm OD x 6.5mm L

1шт.

13

5089591

BOLT,Hex, M10 x 1.25 x 41mm

2шт.

14

5090125

BALL BEARING,25 mm ID x 42 mm OD x 9 mm

2шт.

15

5089587

GAS STRUT

, Serial Range: -C6035

1шт.

15

87732038

GAS STRUT

, Start Serial: D6035

1шт.

16

5089588

BOLT

1шт.

17

10733601

COTTER PIN,M3.2 x 22

2шт.

18

10520201

WASHER,16.4mm ID x 28mm OD x 3mm Thk

2шт.

19

5089762

LEVER

1шт.

20

5093215

PIN

1шт.

21

5177017

HANDLE GRIP

1шт.

22

5089761

SPRING

1шт.

23

14464280

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.

24

10444821

SCREW,Hex, M4 x 16mm, Cl 8.8, Full Thd

2шт.

25

5089584

STEERING COLUMN

, Serial Range: -C6270

2шт.

25

84152486

STEERING COLUMN

, Start Serial: D6270

1шт.

26

5089707

COVER

1шт.

27

11067376

SNAP RING,M25, Ext

1шт.
