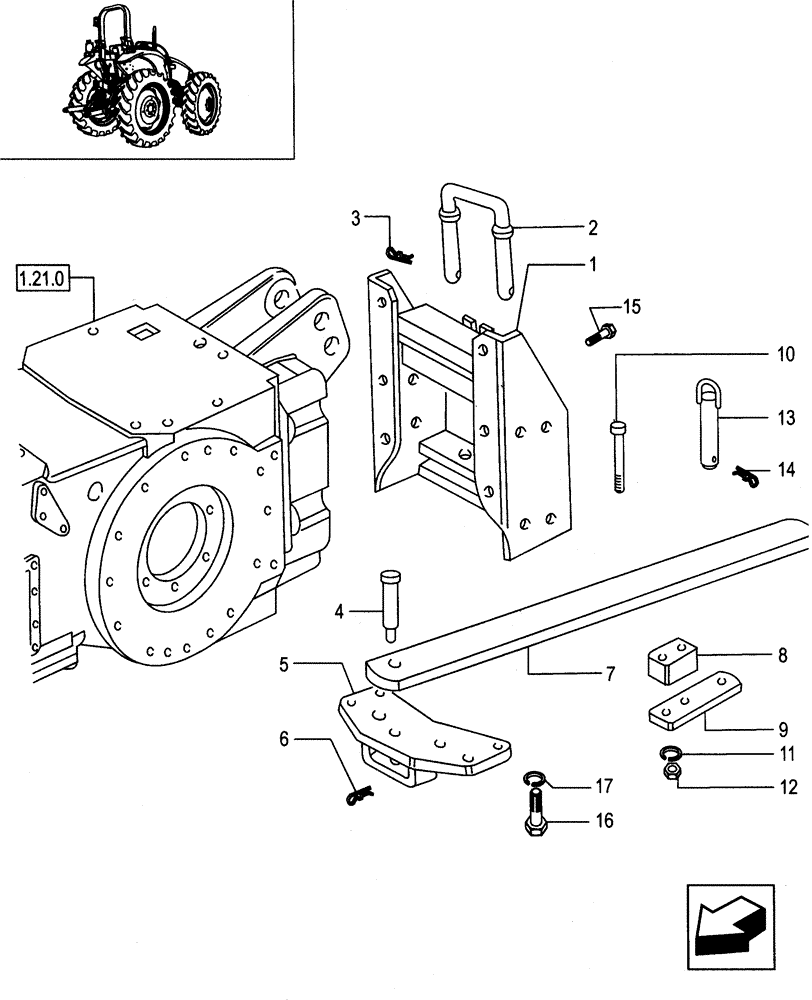

Запчасти Case IH JX90 (1.89.0/03[02]) - (VAR.912) INDIPENDENT DRAWBAR WITH CLEVIS (HOLE 33MM.) - FOR HIGH CLEARANCE VERSION (09) - IMPLEMENT LIFT

1

5093158

SUPPORT

1шт.

2

5123643

PIN

1шт.

3

4996920

COTTER PIN,8.75mm x 168mm L

1шт.

4

84195997

PIN,28mm OD x 111mm L

1шт.

5

5120238

BRACKET

1шт.

6

44007661

COTTER PIN,33.2mm OD x 78mm L

1шт.

7

5094000

DRAWBAR,668mm L x 60mm W x 35mm Thk

1шт.

8

5121551

SPACER

1шт.

9

5093297

DRAWBAR,220mm L x 60mm W x 30mm Thk

1шт.

10

15986634

BOLT,Hex, M18 x 1.5 x 170mm, Cl 10.9

2шт.

11

10572279

WASHER,M18

2шт.

12

10721021

NUT,M18 x 1.5, Cl 10

2шт.

13

5093226

HITCH PIN,31.5mm OD x 192mm L

1шт.

14

5085461

COTTER PIN

1шт.

15

15981521

BOLT,Hex, M16 x 1.5 x 90mm, Cl 8.8

6шт.

16

15981821

SCREW,Hex, M16 x 1.5 x 120mm, Cl 8.8

4шт.

17

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

4шт.
