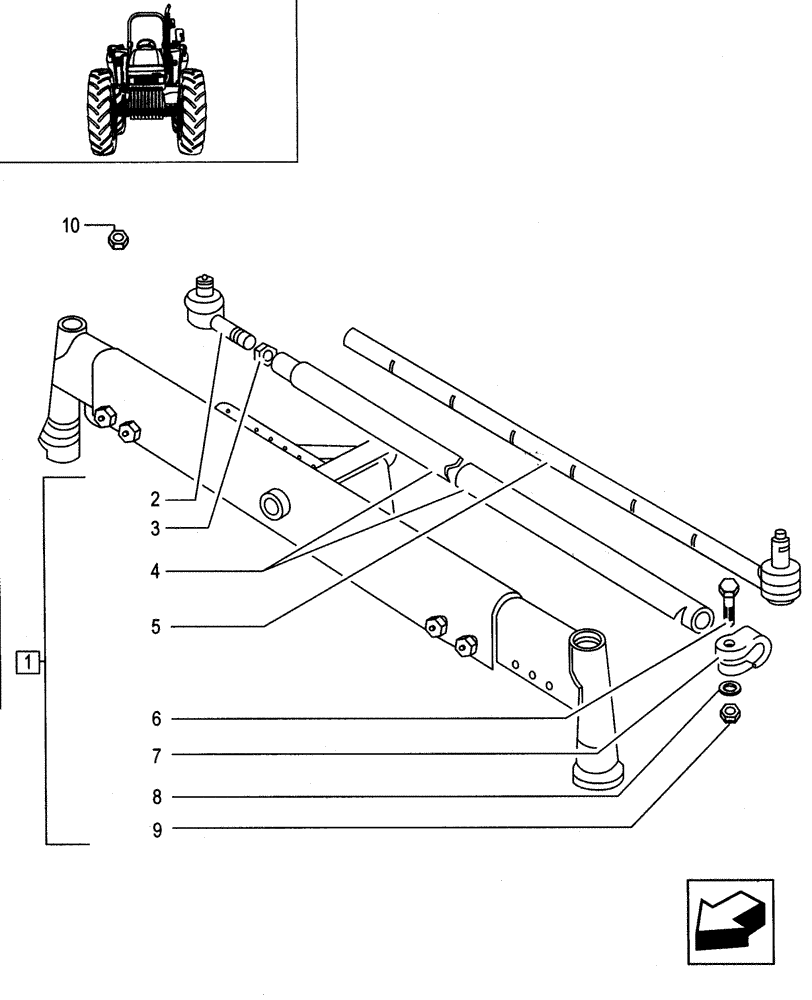

Запчасти Case IH JX90 (1.63.4/01) - STEERING TIE-ROD - TIE-ROD - FOR HIGH CLEARANCE VERSION (04) - FRONT AXLE & STEERING

1

5152531

TRACK ROD ASSY

1шт.

2

5109526

TRACK ROD END

1шт.

3

587302

LOCK NUT,Hex, M20 x 1

2шт.

4

5152532

TIE-ROD

1шт.

5

5152533

TRACK ROD END

1шт.

6

9602206

SCREW,Hex, M10 x 1.25 x 50mm, Cl 8.8

1шт.

7

4997704

CLAMP

1шт.

8

10516874

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

M10

12шт.

9

12164724

NUT,M10 x 1.25, Cl 10

4шт.

10

12575821

LOCK NUT,M14 x 1.5, Cl 05

2шт.
