Запчасти Case IH JX90 (1.40.5/14) - 4WD FRONT AXLE, STEERING CYLINDER - FOR HIGH CLEARENCE VERSION (04) - FRONT AXLE & STEERING

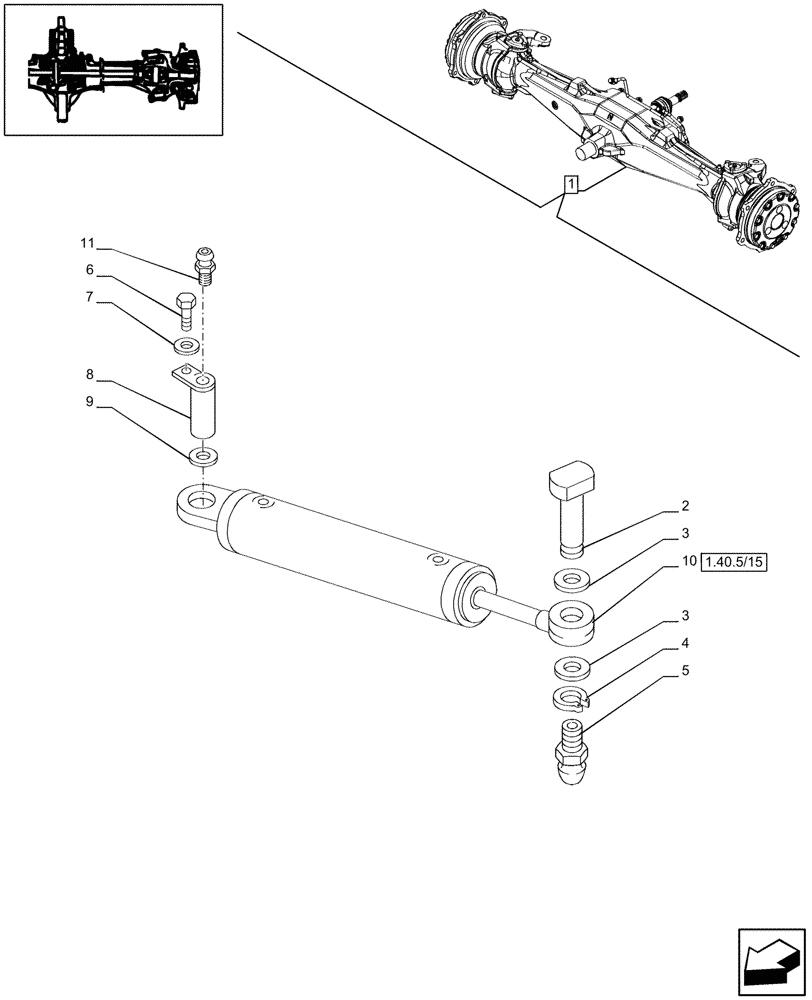

Схема запчастей Case IH JX90 - (1.40.5/14) - 4WD FRONT AXLE, STEERING CYLINDER - FOR HIGH CLEARENCE VERSION (04) - FRONT AXLE & STEERING
1.40.5/15
4
7
11
2
6
3
1
8
9
3
5
10

Артикул

Название

Примечание

Количество

1

87307627

FRONT AXLE

4WD, ASSY, Incl 2 - 11

1шт.

2

4987671

PIN,30mm OD x 61mm L

1шт.

3

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

2шт.

4

11066876

SNAP RING,M20, Ext

1шт.

5

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

1шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

8

5142048

PIN,19.98mm x 107.00mm

1шт.

9

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

1шт.

10

5189895

STEERING CYLINDER,Double Acting, 22mm Rod, 202mm Stroke

ASSY

1шт.

11

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

1шт.

Выбрано товаров: 11
