Запчасти Case IH JX90 (1.40.5/11) - 4WD FRONT AXLE, PLANETARY CARRIER SHAFT, LH - FOR HIGH CLEARENCE VERSION (04) - FRONT AXLE & STEERING

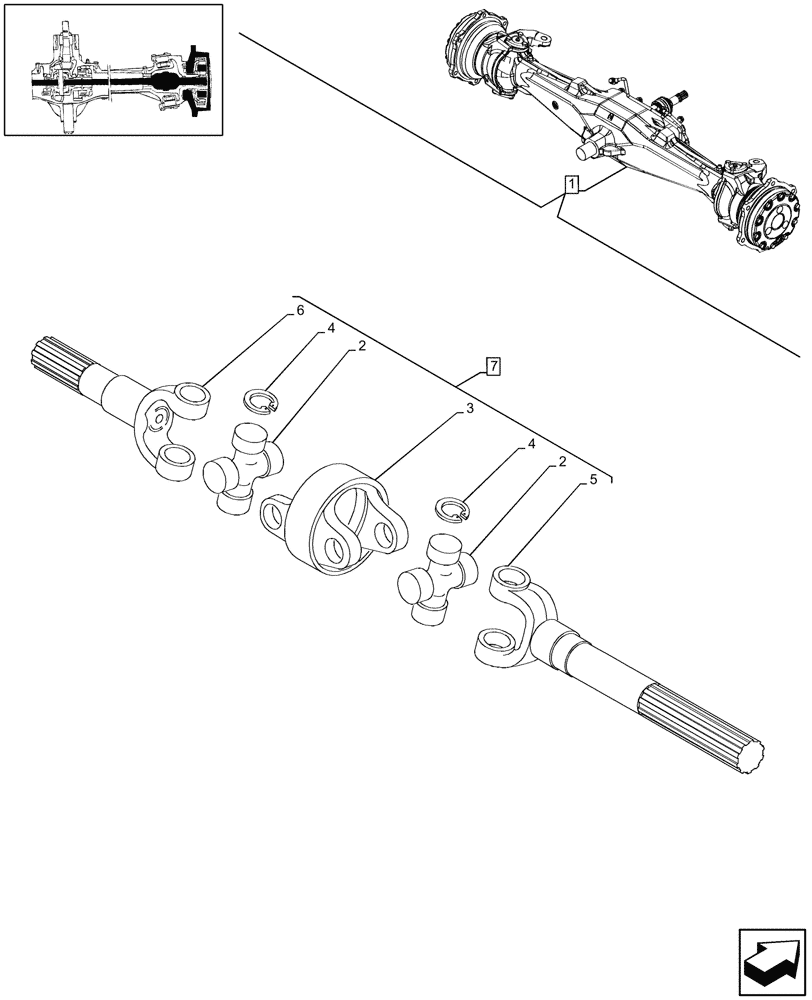

Схема запчастей Case IH JX90 - (1.40.5/11) - 4WD FRONT AXLE, PLANETARY CARRIER SHAFT, LH - FOR HIGH CLEARENCE VERSION (04) - FRONT AXLE & STEERING
4
2
6
7
4
2
1
5
3

Артикул

Название

Примечание

Количество

1

87307627

FRONT AXLE

4WD, ASSY, Incl 2 - 7

1шт.

2

5191547

U-JOINT SPIDER

2шт.

3

87361042

YOKE

1шт.

4

5191548

CIRCLIP

8шт.

5

5191553

HALF SHAFT

1шт.

6

5191549

SHAFT

1шт.

7

5189211

AXLE-SHAFT, ARTICULA

Wheel, LH, ASSY, Incl 2 - 6

1шт.

Выбрано товаров: 7
