Запчасти Case IH JX90 (1.40.4/12[02]) - (VAR.540) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER (4OKHPH) - POWER STEERING CYLINDER AND PIPES (04) - FRONT AXLE & STEERING

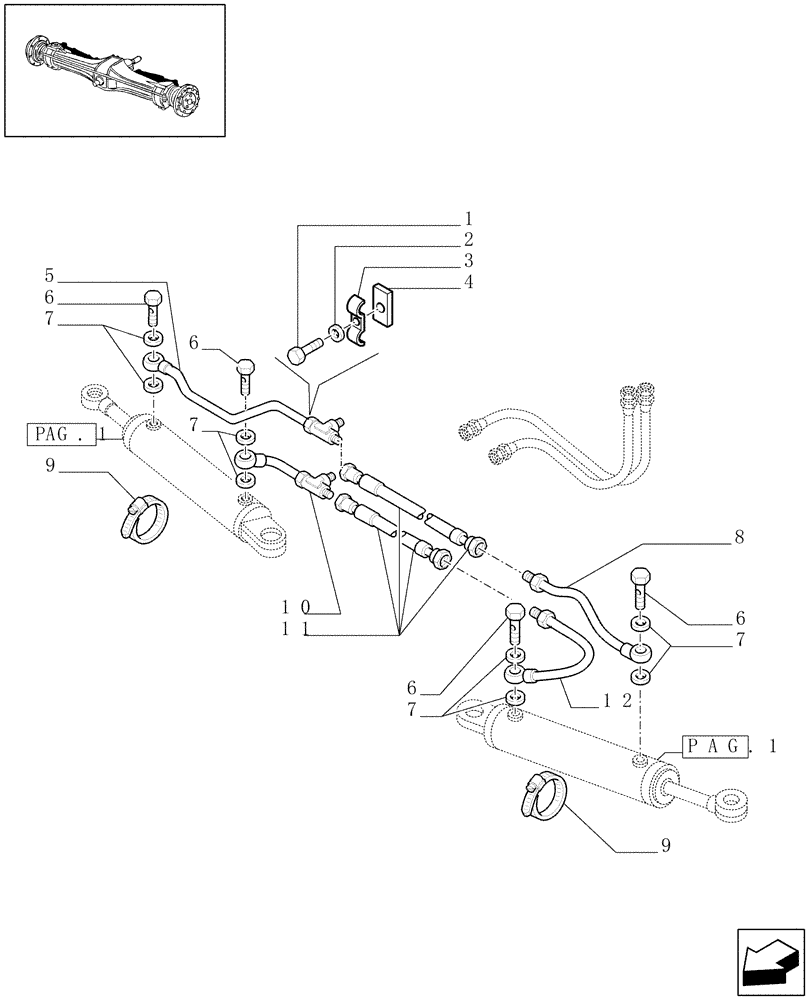

Схема запчастей Case IH JX90 - (1.40.4/12[02]) - (VAR.540) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER (4OKHPH) - POWER STEERING CYLINDER AND PIPES (04) - FRONT AXLE & STEERING
7
9
5
2
6
11
7
12
1
p
6
3
6
6
7
4
g.1
10
a
8
7
9
pag.1

Артикул

Название

Примечание

Количество

1

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

2

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

3

4999554

CLAMP,2 Hoses

2шт.

4

5138294

SUPPORT

2шт.

5

5139049

HYD TUBE

RH

2шт.

6

10184311

BANJO BOLT,M14 x 1.5 x 27mm

4шт.

7

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

RECT.14,86X22,23X2

8шт.

8

5139046

HYD TUBE

LH

1шт.

9

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

2шт.

10

5163740

TUBE

LH

1шт.

11

5126537

FLEXIBLE HOSE,8mm ID x 380mm L, SAE 100R2

2шт.

12

5163738

HYD TUBE

RH

1шт.

Выбрано товаров: 12
