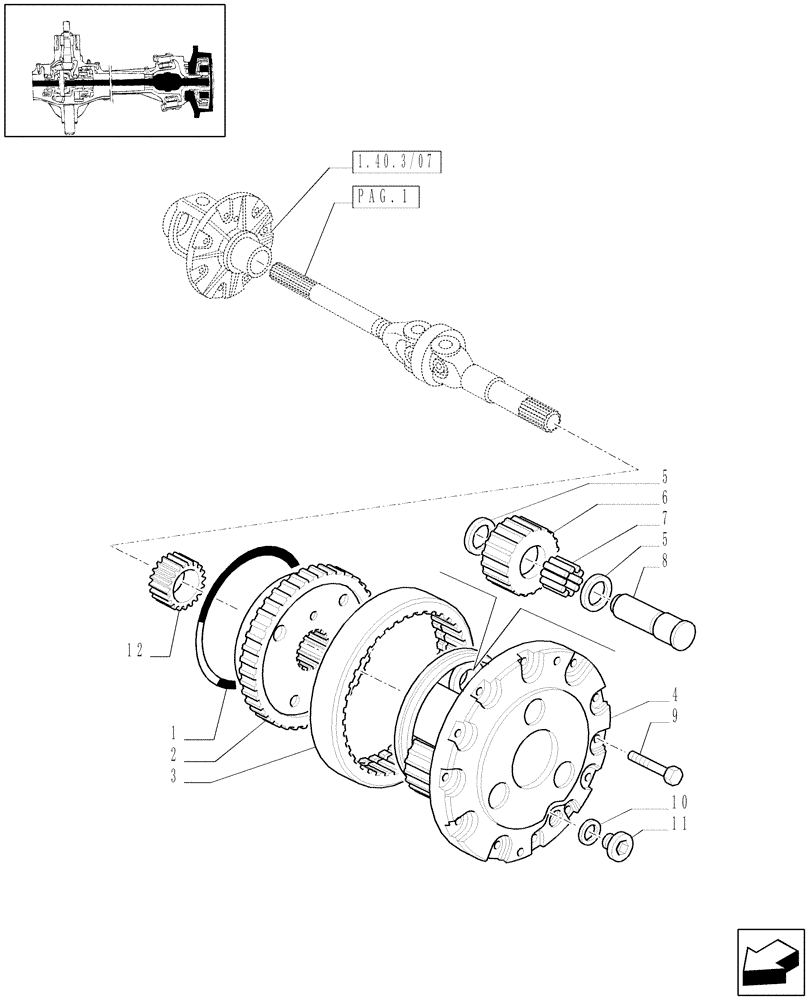

Запчасти Case IH JX90 (1.40.4/10[02]) - (VAR.540) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER (4OKHPH) - EPICYCLIC REDUCTION GEAR (04) - FRONT AXLE & STEERING

1

4997571

CIRCLIP

D=210

2шт.

2

5142047

PLANET CARRIER

2шт.

3

5108749

RING GEAR

2шт.

4

5181052

SUPPORT

2шт.

5

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

D=25X45X0,8

12шт.

6

5108747

PLANETARY GEAR

6шт.

7

5101693

ROLLER BEARING,25.6 mm ID x 35.6 mm OD x 29.8 mm

6шт.

8

5181053

PIN,29.98mm OD x 66.5mm L

6шт.

9

14233624

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

24шт.

10

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

11

10305171

PLUG,M22 x 1.5 x 21

2шт.

12

5137107

SUN GEAR

2шт.
