(1.40.4/10[01]) - (VAR.540) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER (4OKHPH) - HALF-SHAFTS AND SPIDER

Запчасти Case IH JX90 (1.40.4/10[01]) - (VAR.540) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER (4OKHPH) - HALF-SHAFTS AND SPIDER (04) - FRONT AXLE & STEERING

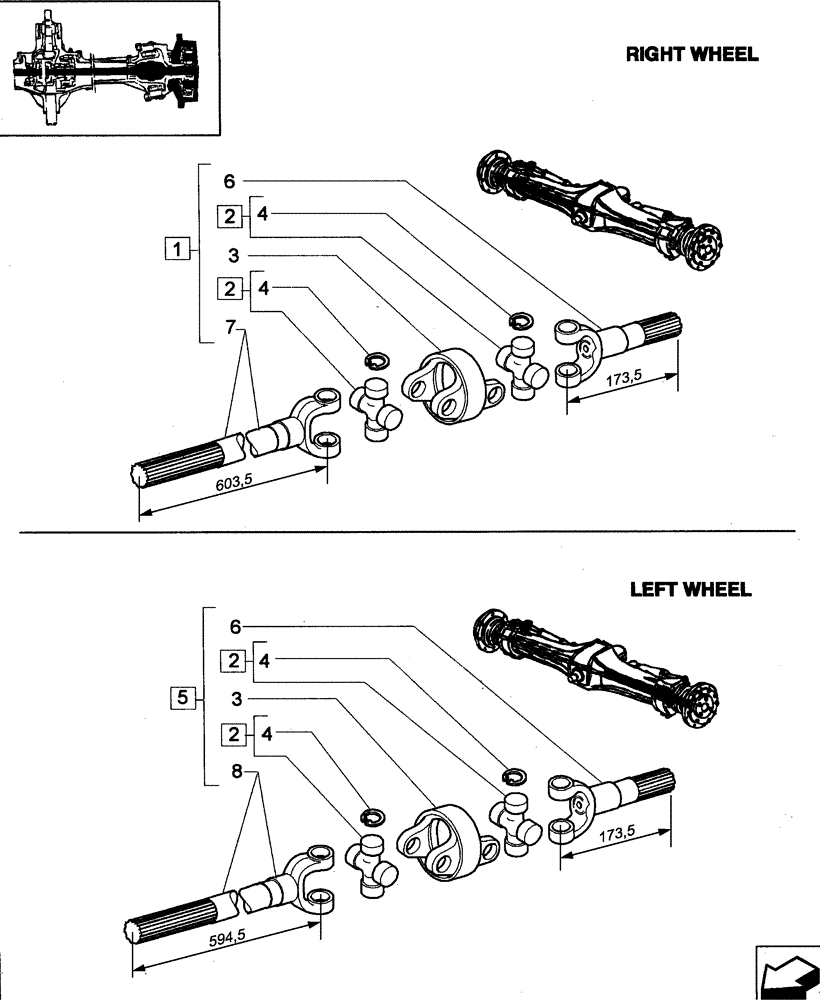

Схема запчастей Case IH JX90 - (1.40.4/10[01]) - (VAR.540) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER (4OKHPH) - HALF-SHAFTS AND SPIDER (04) - FRONT AXLE & STEERING
2
7
4
8
4
6
2
5
2
3
2
4
6
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5164345

HALF SHAFT

RH

1шт.

2

5191547

U-JOINT SPIDER

4шт.

3

5191550

YOKE

2шт.

4

5191548

CIRCLIP

16шт.

5

5164342

AXLE-SHAFT, ARTICULA

LH

1шт.

6

5191549

SHAFT

LH, 199.5 mm

2шт.

7

5191562

SHAFT

RH

1шт.

8

5191589

SHAFT

LH

1шт.

Выбрано товаров: 8
