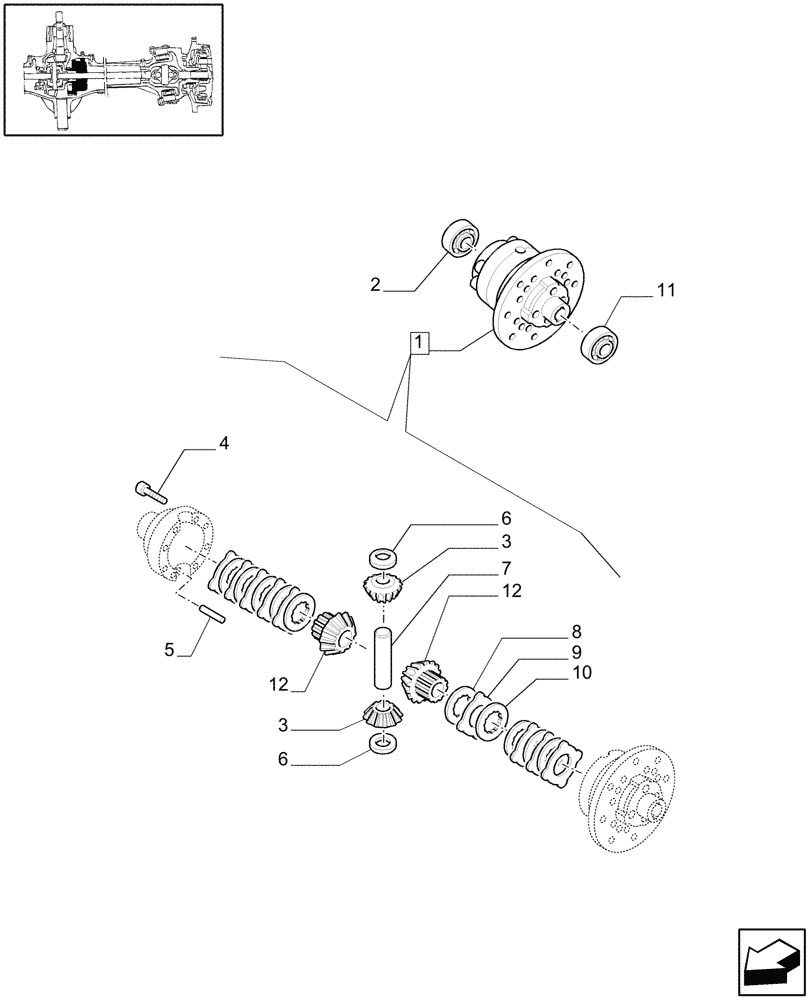

Запчасти Case IH JX90 (1.40.3/07[02]) - (VAR.115) TRANSMISSION W/FRONT BRAKE AND LIMITED SLIP - DIFFERENTIAL (04) - FRONT AXLE & STEERING

1

5163496

DIFFERENTIAL

1шт.

2

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

D=60x95x2

1шт.

3

9966353

IDLER PINION

2шт.

4

14308124

HEX SOC SCREW,M10 x 1.25 x 60mm, Cl 8.8

12шт.

5

9966356

ROLL PIN,7mm OD x 40mm L

1шт.

6

9966352

THRUST WASHER

2шт.

7

9966354

SHAFT

1шт.

8

9966308

PLATE

2шт.

9

9966309

DRIVEN PLATE

10шт.

10

9966310

PLATE

8шт.

11

84417842

BEARING ASSY

D=63.485x94.975x17

1шт.

12

9966355

PLANETARY GEAR

2шт.
