Запчасти Case IH JX90 (1.40.0/10[02]) - FRONT AXLE - HALF-SHAFTS AND RINGS (04) - FRONT AXLE & STEERING

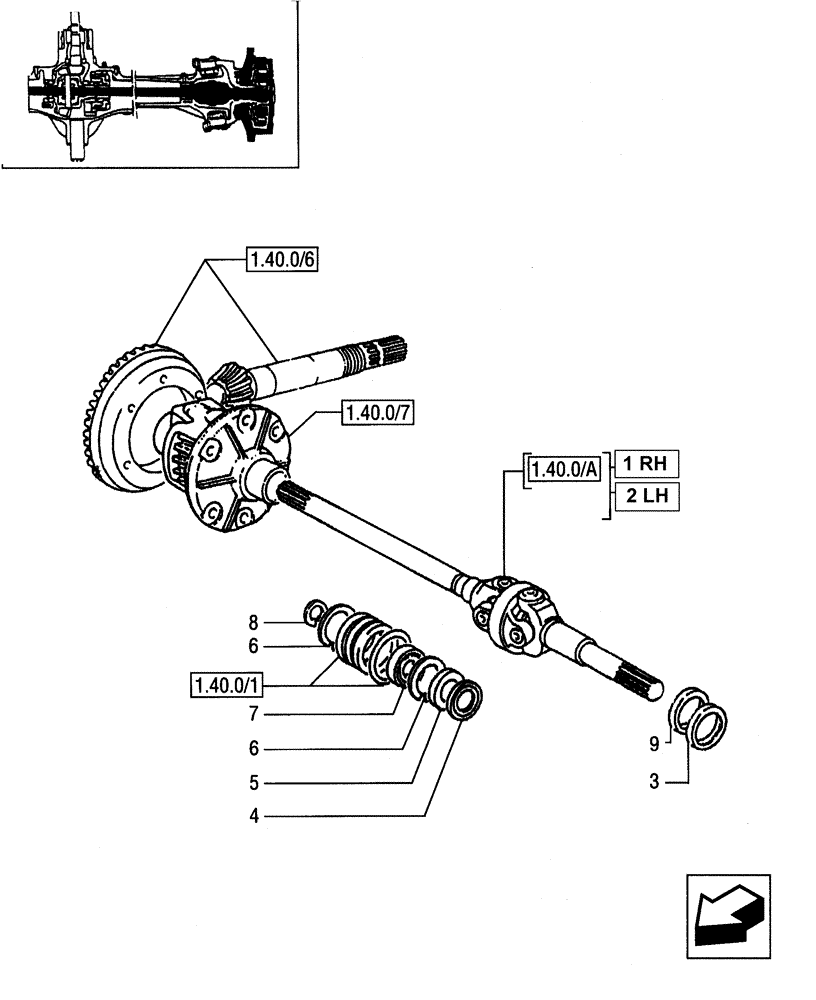

Схема запчастей Case IH JX90 - (1.40.0/10[02]) - FRONT AXLE - HALF-SHAFTS AND RINGS (04) - FRONT AXLE & STEERING
1
7
6
3
9
2
8
5
4
6

Артикул

Название

Примечание

Количество

1

5142040

AXLE-SHAFT, ARTICULA

RH

1шт.

2

5142043

AXLE-SHAFT, ARTICULA

LH

1шт.

3

5133799

SEAL,42mm ID x 62mm OD x 17mm Thk

62 x 42 x 17

2шт.

4

4996762

RETAINER,40.2mm ID x 62mm OD x 6mm L

2шт.

5

87350856

SEAL,38.4mm ID x 62mm OD x 10mm Thk

2шт.

6

11061076

SNAP RING,M62, Int

4шт.

7

28042470

BALL BEARING,35mm ID x 62mm OD x 14mm W

2шт.

8

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

9

4997444

DISC

2шт.

Выбрано товаров: 9
