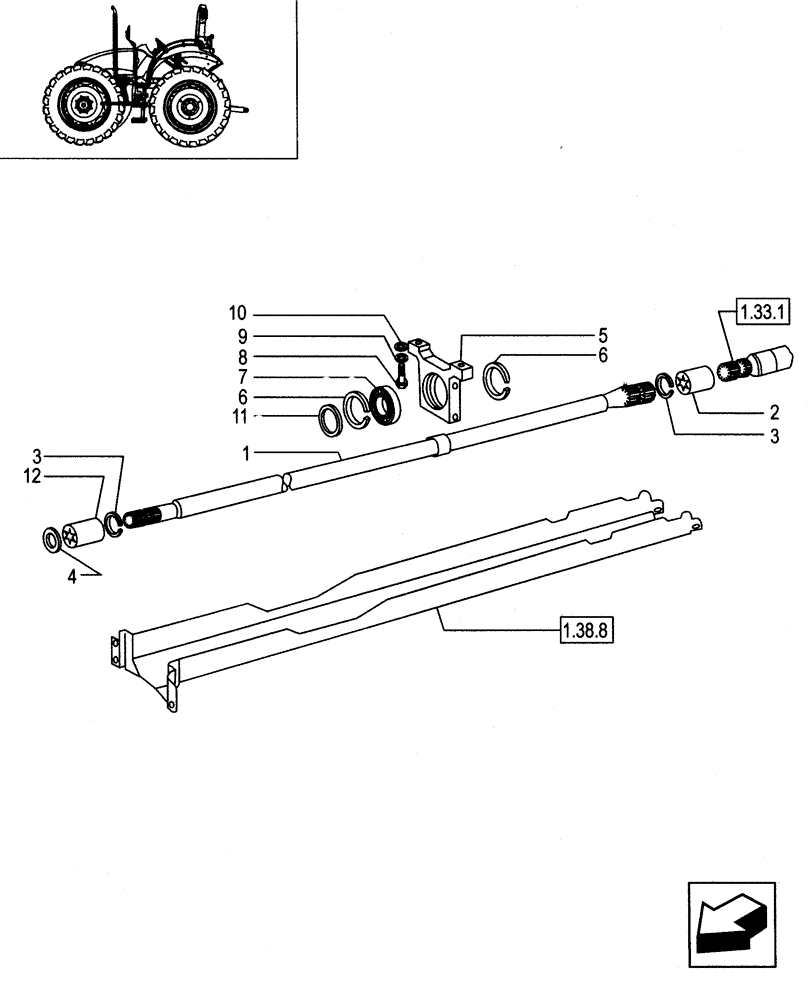

Запчасти Case IH JX90 (1.38.5/03) - TRANSMISSION SHAFT - FOR HIGH CLEARANCE VERSION (04) - FRONT AXLE & STEERING

1

5150377

PROPELLER SHAFT

1шт.

2

5150124

SLEEVE,14T

1шт.

3

11067876

SNAP RING,M30, Ext

2шт.

4

5143583

SHIM,31.7mm ID x 42mm OD x 1mm Thk

2шт.

4

5143584

SHIM,31.7mm ID x 42mm OD x 1.2mm Thk

2шт.

4

5143585

SHIM,31.7mm ID x 42mm OD x 1.5mm Thk

2шт.

4

5143586

SHIM,32mm ID x 42mm OD x 1.8mm Thk

2шт.

5

5156553

SUPPORT

1шт.

6

11061576

SNAP RING,M72, Int

2шт.

7

28996540

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

8

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

9

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

10

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

11

5150378

SPACER

1шт.

12

5094593

SLEEVE

1шт.
