(1.33.2/01) - (VAR.324) 4WD FRONT AXLE WITH SLIP CONTROL FRONT BRAKE - LEVER AND TIE-ROD

Запчасти Case IH JX90 (1.33.2/01) - (VAR.324) 4WD FRONT AXLE WITH SLIP CONTROL FRONT BRAKE - LEVER AND TIE-ROD (04) - FRONT AXLE & STEERING

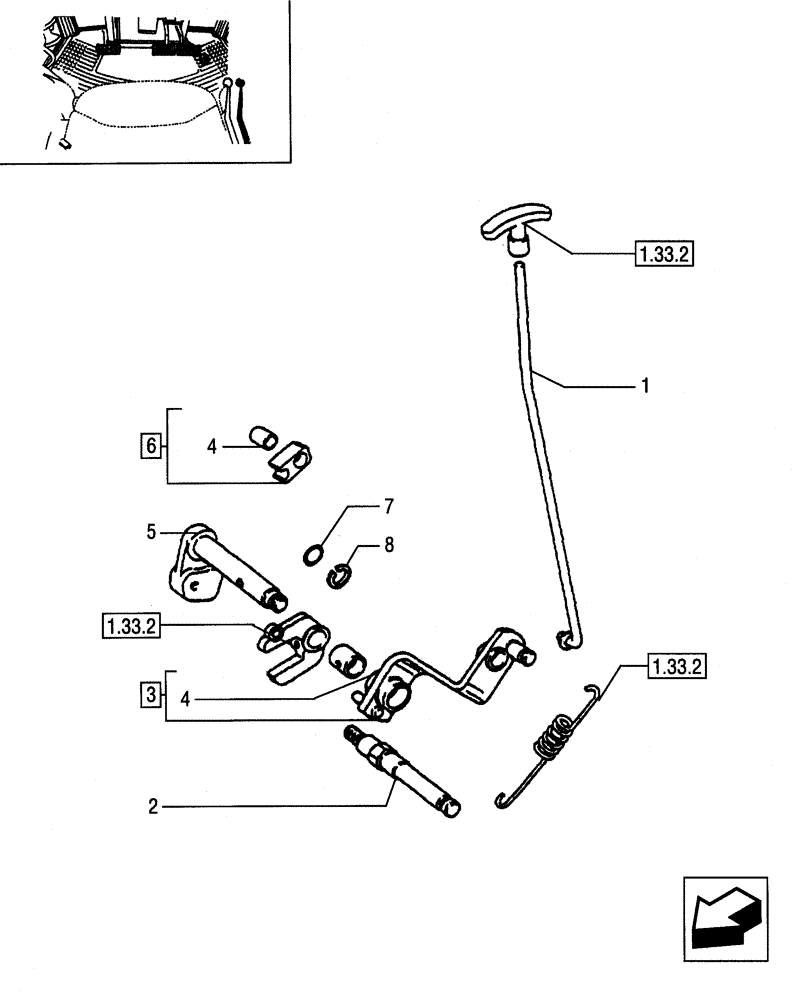

Схема запчастей Case IH JX90 - (1.33.2/01) - (VAR.324) 4WD FRONT AXLE WITH SLIP CONTROL FRONT BRAKE - LEVER AND TIE-ROD (04) - FRONT AXLE & STEERING
5
8
1.33.2
1.33.2
3
2
4
4
1.33.2
1
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5152130

TIE-ROD

P.T.O.

1шт.

2

5152137

SCREW

Special

1шт.

3

5152136

LEVER

1шт.

4

5111809

BUSHING,16mm ID x 18mm OD x 15mm L

2шт.

5

5157598

LEVER

1шт.

6

5152139

SPACER

1шт.

7

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

8

11066276

SNAP RING,M14, Ext

1шт.

Выбрано товаров: 8
