(1.21.5) - (VAR.242) FRONT COUNTERWEIGHT SUPPORT - SUPPORT, TIE-ROD AND COUNTERWEIGHT

Запчасти Case IH JX90 (1.21.5) - (VAR.242) FRONT COUNTERWEIGHT SUPPORT - SUPPORT, TIE-ROD AND COUNTERWEIGHT (03) - TRANSMISSION

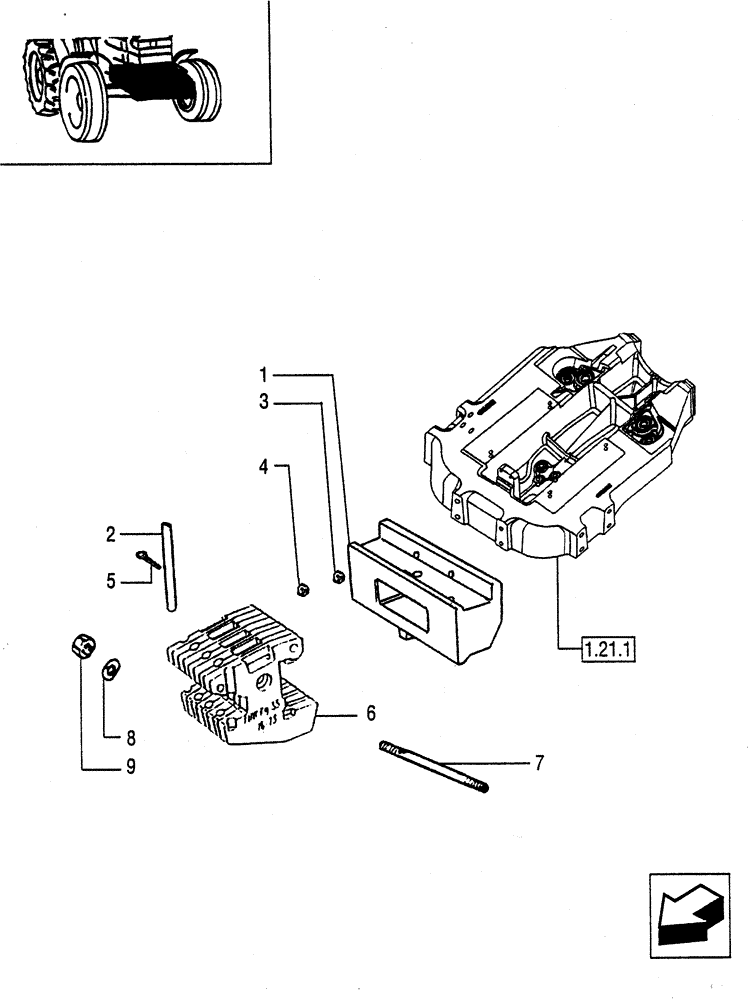

Схема запчастей Case IH JX90 - (1.21.5) - (VAR.242) FRONT COUNTERWEIGHT SUPPORT - SUPPORT, TIE-ROD AND COUNTERWEIGHT (03) - TRANSMISSION
6
1.21.1
1
5
4
2
8
7
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5091957

WEIGHT CARRIER

1шт.

2

5092098

PLATE

1шт.

3

10520201

WASHER,16.4mm ID x 28mm OD x 3mm Thk

4шт.

4

10572179

LOCK WASHER,M16

4шт.

5

15981221

SCREW,Hex, M16 x 1.5 x 65mm, Cl 8.8

4шт.

6

5091956

WEIGHT

8шт.

7

5092102

THREADED ROD

1шт.

8

12164111

NUT,M16, Cl 8

2шт.

9

5092100

SPACER,17.5mm ID x 34mm OD x 5mm L

2шт.
