(1.19.1[03]) - DRY AIR FILTER - SLEEVES, SUPPORTS AND COLLARS

Запчасти Case IH JX90 (1.19.1[03]) - DRY AIR FILTER - SLEEVES, SUPPORTS AND COLLARS (02) - ENGINE EQUIPMENT

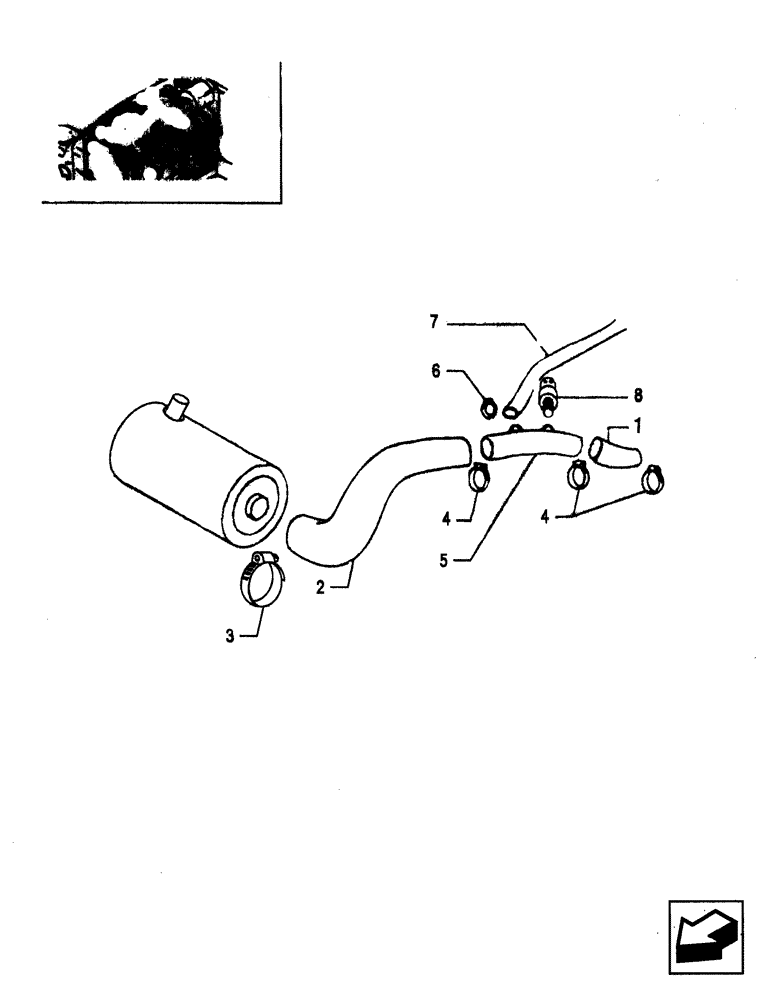

Схема запчастей Case IH JX90 - (1.19.1[03]) - DRY AIR FILTER - SLEEVES, SUPPORTS AND COLLARS (02) - ENGINE EQUIPMENT
7
3
4
6
1
5
4
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5094519

HOSE

JX90 - JX95

1шт.

1

5094529

SLEEVE

JX70

1шт.

2

5094520

ELBOW

Air Filter

1шт.

3

13001290

HOSE CLAMP,90mm - 110mm, Worm Gear

D=90-110

1шт.

4

5085782

CLAMP

3шт.

5

5094530

PIPE

1шт.

6

5085776

HOSE CLAMP

22 x 36

2шт.

7

5094791

HOSE,21.00 mm ID x 88.50 mm, SAE 100RG, SAE J517

1шт.

8

5138819

INDICATOR

1шт.

Выбрано товаров: 9
