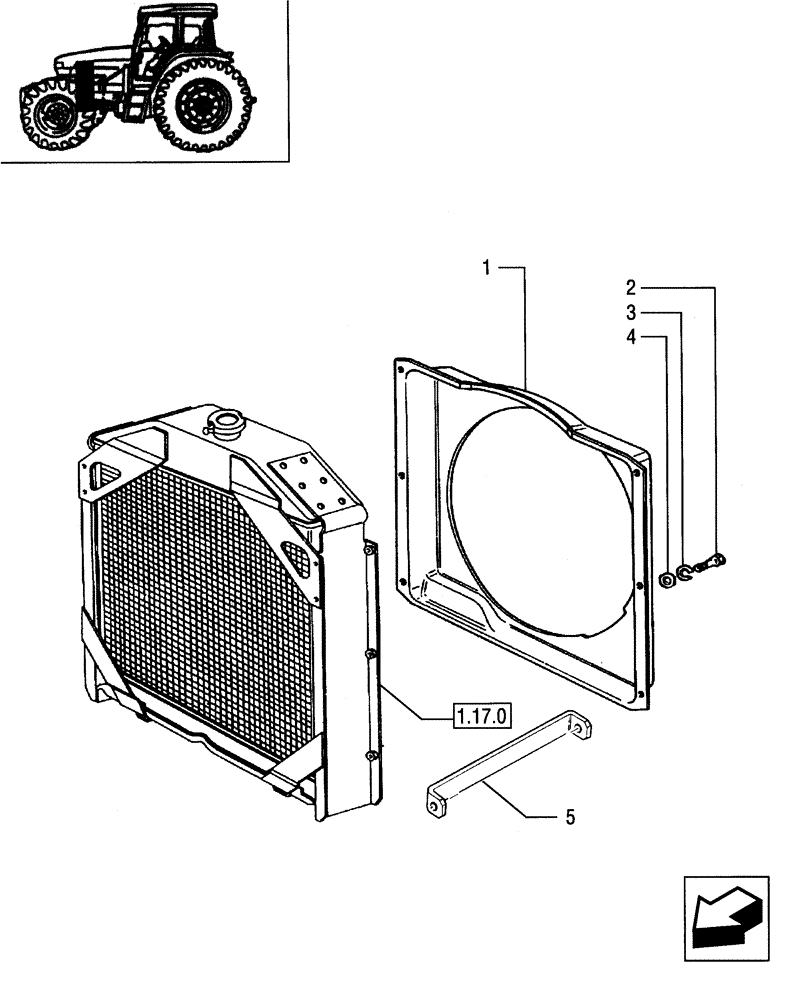

Запчасти Case IH JX90 (1.17.6) - CONVEYOR (02) - ENGINE EQUIPMENT

1

5153163

GUARD

JX60, JX70, JX80

1шт.

1

5090561

GUARD

JX90, JX95

1шт.

1

5092572

GUARD

JX60

1шт.

w/air cond.

1шт.

1

5094445

SHROUD

JX70, JX80

1шт.

w/air cond.

1шт.

2

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

6шт.

2

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.

3

10571579

LOCK WASHER,M6

6шт.

4

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

6шт.

4

11193871

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

5

5093788

PLATE

1шт.
