Запчасти Case IH JX90 (1.17.2[02]) - PIPES (02) - ENGINE EQUIPMENT

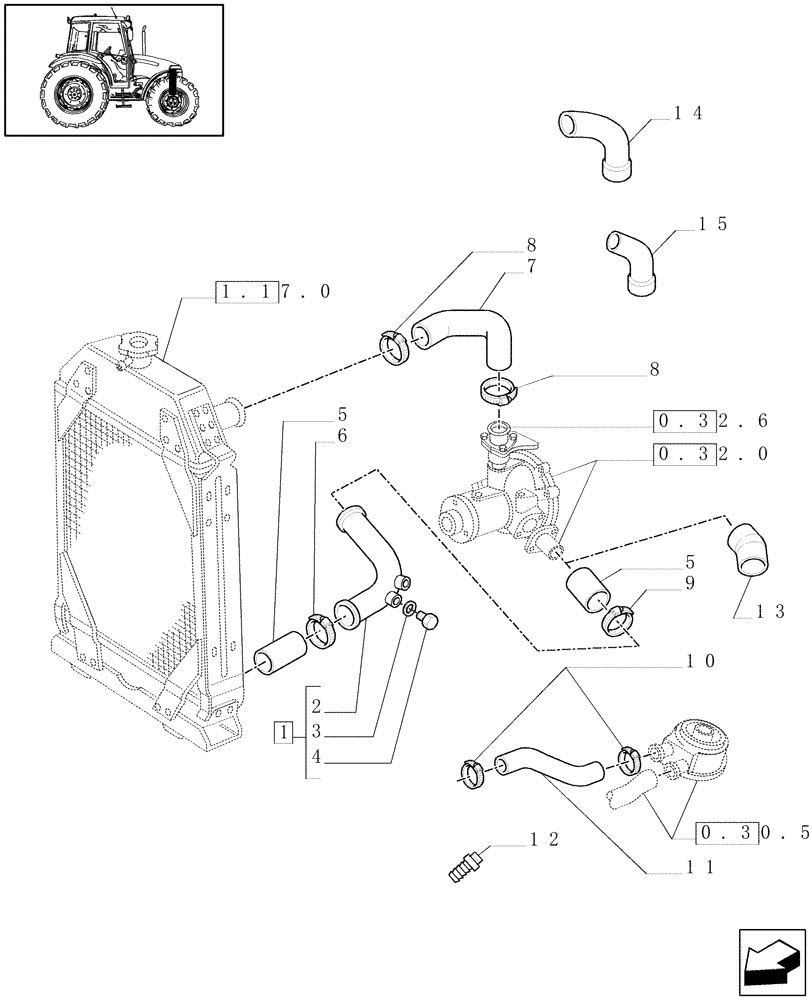

Схема запчастей Case IH JX90 - (1.17.2[02]) - PIPES (02) - ENGINE EQUIPMENT
3
13
7
4
5
0.32.6
12
5
11
2
15
9
8
0.32.0
8
14
1.17.0
10
6
0.30.5
1

Артикул

Название

Примечание

Количество

1

5091445

TUBE

Cap, HH, CL 8.8, M8 x 1.25 x 16

1шт.

2

5091448

HOSE

, Serial Range: -C6045

1шт.

2

5083100

TUBE

, Start Serial: D6045

1шт.

3

4858609

WASHER,Brass

1шт.

4

10300714

PLUG,M16 x 1.5 x 14

1шт.

5

5096235

RADIATOR HOSE,105.00 mm

, Serial Range: -C6045

2шт.

5

5083101

RADIATOR HOSE

, Start Serial: D6045

1шт.

6

10291090

CLAMP

2шт.

7

5090562

LARGE HOSE,38.00 mm ID, 45.00 mm ID x 121.00 mm

HOSE,LARGE, Serial Range: -C5834

1шт.

8

5097540

COLLAR,40mm - 60mm

2шт.

9

5097539

COLLAR,32mm - 50mm

2шт.

10

13000290

HOSE CLAMP,12mm - 18mm, Worm Gear

2шт.

11

44903912

HOSE,15.9mm ID x 620mm L

, Serial Range: -C5640

1шт.

11

5098180

HOSE,15.9mm ID x 530mm L

L=580mm, JX80, JX90, JX95, Start Serial: D5640

1шт.

11

5098179

HOSE

L=420mm, JX60, JX70, Start Serial: D5640

1шт.

12

5094423

HYD CONNECTOR

, Serial Range: -C6045

1шт.

13

5083099

RADIATOR HOSE

, Start Serial: D6045

1шт.

14

87698631

RADIATOR HOSE,38.00 mm ID, 45.00 mm ID x 104.00 mm

, Serial Range: D5834-C6293

1шт.

15

84175932

RADIATOR HOSE,38.00 mm ID, 45.00 mm ID x 136.00 mm

, Start Serial: D6293

1шт.

Выбрано товаров: 19
