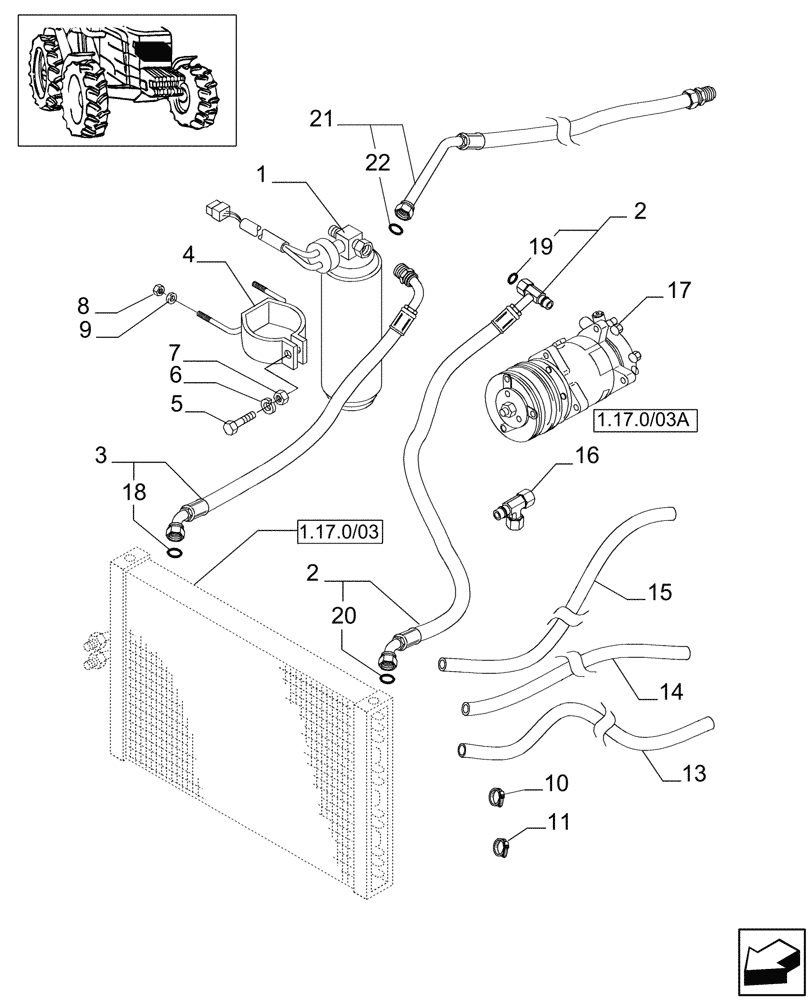

Запчасти Case IH JX90 (1.17.0[04]) - (VAR.641-958) AIR CONDITIONING - FILTER AND PIPES (02) - ENGINE EQUIPMENT

1

5165615

RECEIVER-DRYER

Filter

1шт.

Valid with JX60 Model

1шт.

2

5091890

HOSE

From Compressor to Condenser

1шт.

3

5095483

HOSE

From Condenser to Dryer

1шт.

4

5093231

SUPPORT

1шт.

5

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

6

10571579

LOCK WASHER,M6

1шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

8

12164711

NUT,M10 x 1.25, Cl 8

2шт.

9

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

1шт.

10

10186590

CLAMP,11mm - 13mm

2шт.

11

5085797

CLAMP

2шт.

12

5091891

A/C HOSE

From Evaporator to Compressor

1шт.

13

5097243

HOSE,16mm ID x 3195mm L

Heater

1шт.

JX95 only

1шт.

13

5091895

HEATER HOSE,16.00 mm ID x 3230.00 mm

Water Pump to Heater Valve

1шт.

14

5097244

HEATER HOSE,16.00 mm ID x 4045.00 mm

Heater

1шт.

JX95 only

1шт.

14

5091897

FLEXIBLE HOSE,16.00 mm ID x 3990.00 mm

Heater to Lower Radiator Hose

1шт.

15

5091896

HEATER HOSE,16mm ID x 1080mm L

Heater Valve to Heater

1шт.

16

5092979

TEE

1шт.

17

84316006

AIRCOND. COMPRESSOR

1шт.

18

14452883

O-RING,7.65mm ID x 1.78mm Width

1шт.

19

14453283

O-RING,14mm ID x 1.78mm Width

1шт.

20

14453083

O-RING

1шт.

21

5091888

HOSE

From Dryer to Evaporator

1шт.

22

14452883

O-RING,7.65mm ID x 1.78mm Width

1шт.
