Запчасти Case IH JX90 (1.17.0[03A]) - (VAR.641) AIR CONDITIONING - RADIATOR AND SUPPORTS - D5834 (02) - ENGINE EQUIPMENT

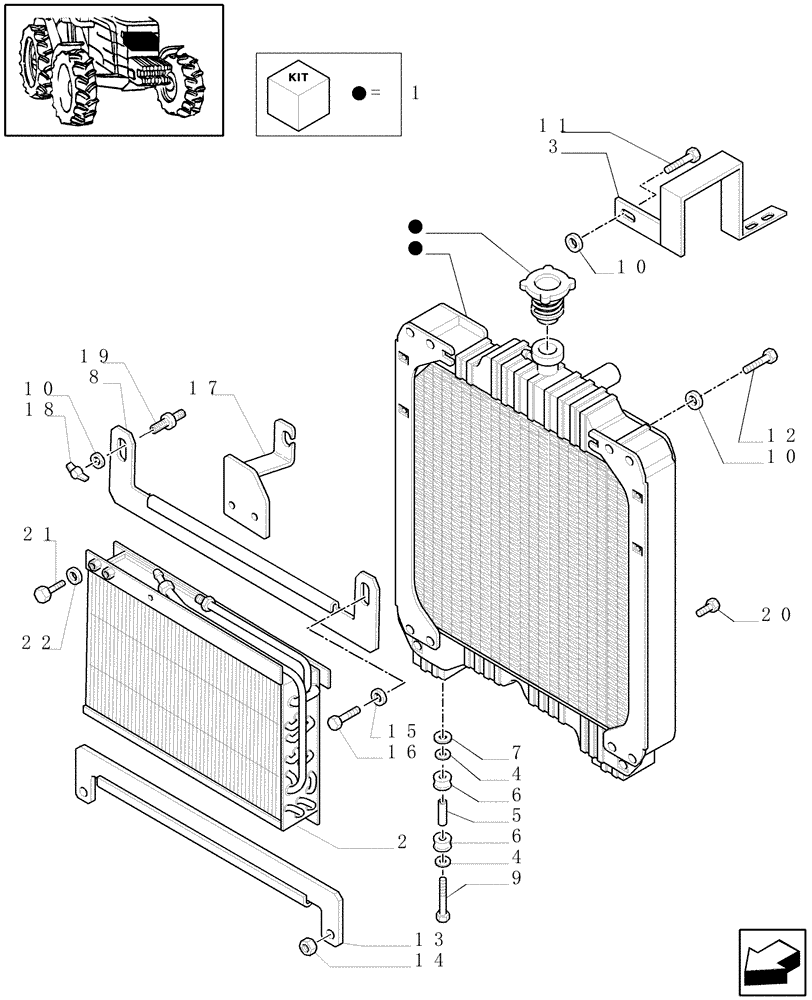

Схема запчастей Case IH JX90 - (1.17.0[03A]) - (VAR.641) AIR CONDITIONING - RADIATOR AND SUPPORTS - D5834 (02) - ENGINE EQUIPMENT
1
16
18
4
19
2
13
10
21
1
1
12
11
4
6
17
10
5
14
22
9
10
3
6
7
15
20
8

Артикул

Название

Примечание

Количество

1

5099122

RADIATOR

1шт.

See Also SGR.1.17.7 for Over Heating Engine Kit

1шт.

2

5096603

CONDENSER

1шт.

3

87721174

SUPPORT

1шт.

4

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

4шт.

5

5102703

SPACER,11mm ID x 15mm OD x 63mm L

2шт.

6

5108225

RUBBER MOUNTING

4шт.

7

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

2шт.

8

5091884

BRACKET

1шт.

9

15971721

SCREW,Hex, M10 x 1.25 x 95mm, Cl 8.8

2шт.

10

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

11

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

12

15697804

SELF-TAP SCREW,Hex Wshr Hd, M6 x 20mm

1шт.

13

87471595

BRACKET

1шт.

14

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

15

10569471

LOCK WASHER,Lock, 3/8"

2шт.

16

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

17

5095375

SUPPORT

1шт.

18

10102004

WING NUT

1шт.

19

5174191

SCREW

1шт.

20

16044721

SCREW,Hex, M8 x 75mm, Cl 8.8

2шт.

20

15953601

SCREW,M6 x 30mm

2шт.

21

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

8шт.

22

12035670

LOCK WASHER

4шт.

Выбрано товаров: 24
