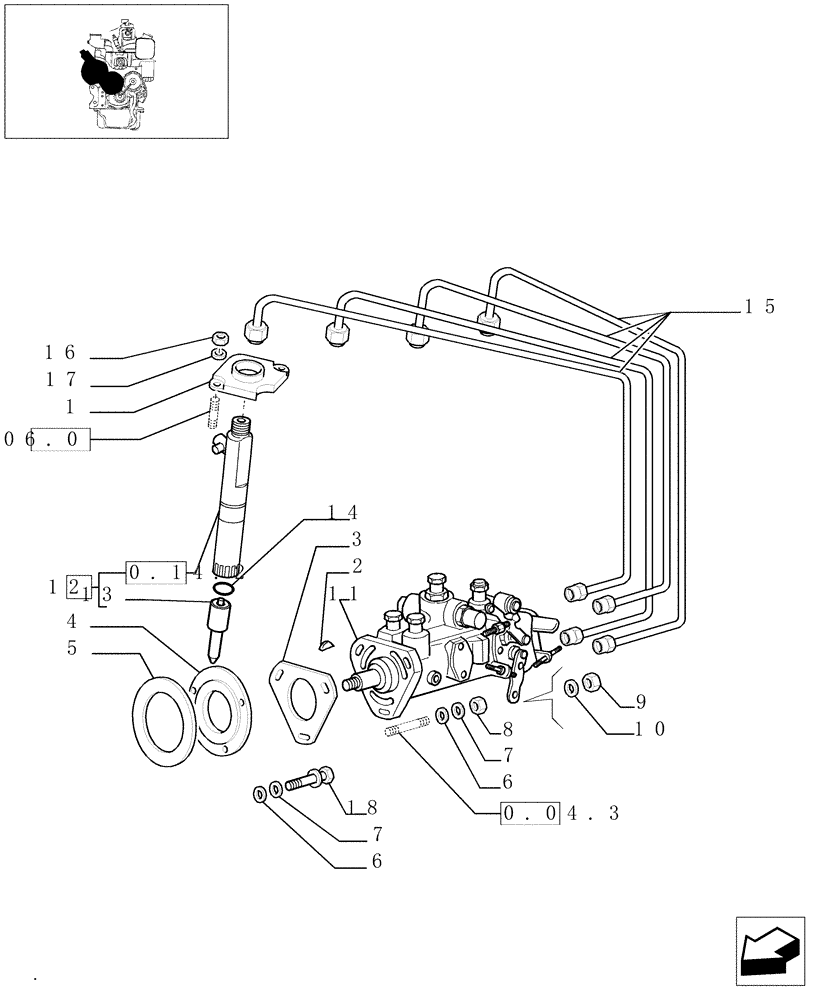

Запчасти Case IH JX85 (0.14.0/05[01]) - FUEL INJECTION PUMP ASSEMBLY (AFTER S/N 13287) (01) - ENGINE

1

4780612

BRACKET

4шт.

2

10205810

WOODRUFF KEY,4mm x 6.5mm x 15.72mm

1шт.

3

4851923

GASKET,0.8mm Thk

1шт.

4

4607646

SPACER,50mm ID x 116.05mm OD x 6mm L

1шт.

5

98400782

GASKET,0.8mm Thk

1шт.

6

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

8

43362

NUT,M8 x 1.25, Cl 10

3шт.

9

17037721

NUT

M5

1шт.

10

11199271

LOCK WASHER

M5

1шт.

11

504042214

FUEL INJECTION PUMP

1шт.

11

504042214R

REMAN-INJECTION PUMP

1шт.

11

504042214C

CORE-INJECTION PUMP

Return Number

1шт.

12

500307714

FUEL SYSTEM INJECTOR

4шт.

12

500307714R

REMAN-INJECT NOZZLE

4шт.

12

500307714C

CORE-NOZZLE, INJECT

Return Number

4шт.

13

99469341

NOZZLE

Assy

4шт.

14

80066297

O-RING

D=8 x 1 x 26 mm

4шт.

15

99449006

HOSE KIT

1шт.

16

17042531

NUT

D=8 mm

8шт.

17

771326

WASHER,8.40mm ID

D=8 mm

8шт.

18

500327046

SCREW

NA Only

1шт.
