Запчасти Case IH JX85 (0.14.0/01[02]) - FUEL INJECTION PUMP ASSEMBLY (BEFORE S/N 13286), NA VERSION (01) - ENGINE

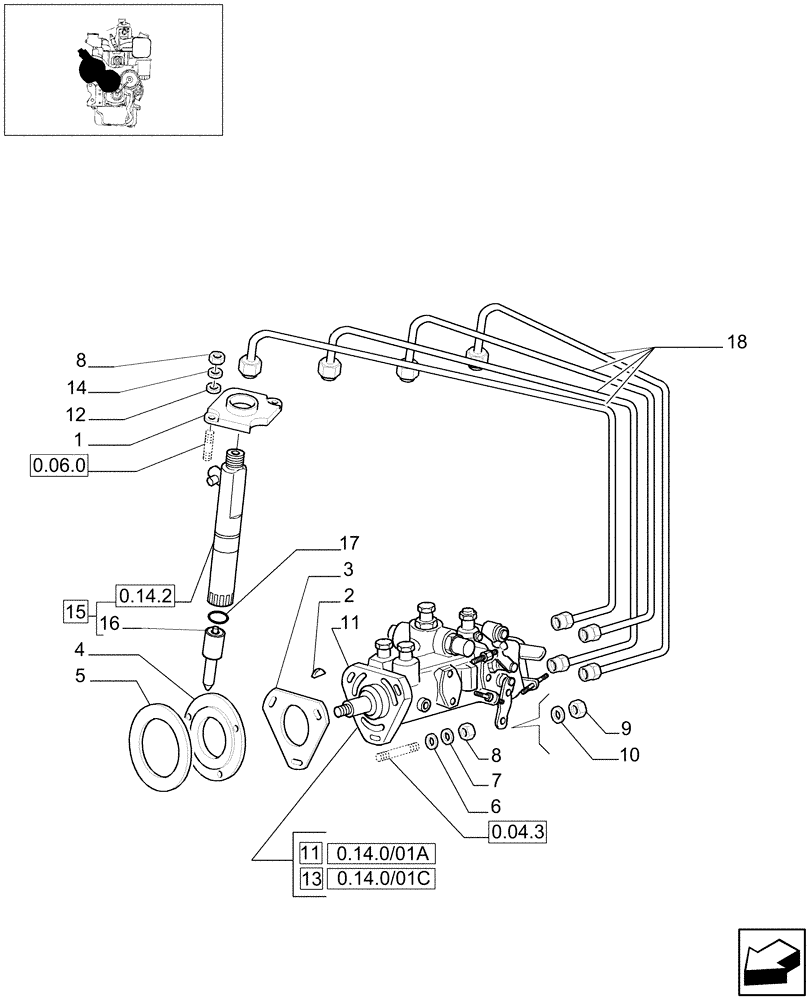

Схема запчастей Case IH JX85 - (0.14.0/01[02]) - FUEL INJECTION PUMP ASSEMBLY (BEFORE S/N 13286), NA VERSION (01) - ENGINE
18
11
0.14.0/01c
11
16
0.14.0/01a
4
7
10
13
2
0.04.3
8
1
9
17
14
0.06.0
12
8
6
5
0.14.2
3
15

Артикул

Название

Примечание

Количество

1

4780612

BRACKET

4шт.

2

10205810

WOODRUFF KEY,4mm x 6.5mm x 15.72mm

Woodruff

1шт.

3

4851923

GASKET,0.8mm Thk

1шт.

4

4607646

SPACER,50mm ID x 116.05mm OD x 6mm L

1шт.

5

98400782

GASKET,0.8mm Thk

1шт.

6

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

M8 x 16 x 1.4

3шт.

8

43362

NUT,M8 x 1.25, Cl 10

11шт.

9

17037721

NUT

M5

1шт.

10

11199271

LOCK WASHER

M5

1шт.

11

500324959

FUEL INJECTION PUMP

JX75 NA Only

1шт.

11

500324959R

REMAN-INJECTION PUMP

JX75

1шт.

11

500324959C

CORE-INJECTION PUMP

JX75

1шт.

12

17089574

SEALING WASHER

Return Number

1шт.

13

771326

WASHER,8.40mm ID

JX85 NA Only

8шт.

14

771326

WASHER,8.40mm ID

JX85

1шт.

15

500317389

FUEL SYSTEM INJECTOR

JX75

4шт.

15

500317389R

REMAN-INJECT NOZZLE

JX75

4шт.

15

500317389C

CORE-NOZZLE, INJECT

Return Number

4шт.

15

500307714

FUEL SYSTEM INJECTOR

JX85

4шт.

15

500307714R

REMAN-INJECT NOZZLE

JX85

4шт.

15

500307714C

CORE-NOZZLE, INJECT

Return Number

4шт.

16

500317390

NOZZLE

JX75

4шт.

16

99469341

NOZZLE

Assy, JX85

4шт.

17

14453589

O-RING,Cl II-18, 70 Duro, .739" ID x .070" Thk

4шт.

18

500303658

HOSE KIT

1шт.

Выбрано товаров: 26
