Запчасти Case IH JX85 (0.14.0/01[01]) - FUEL INJECTION PUMP ASSEMBLY (BEFORE S/N 13286) (01) - ENGINE

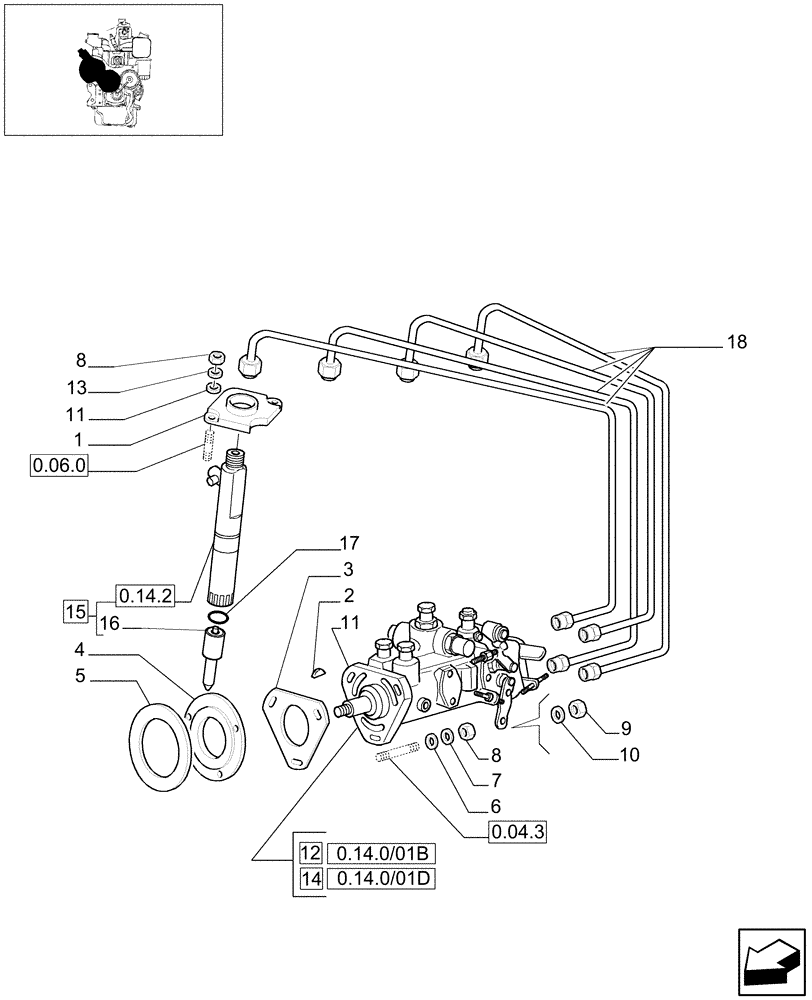

Схема запчастей Case IH JX85 - (0.14.0/01[01]) - FUEL INJECTION PUMP ASSEMBLY (BEFORE S/N 13286) (01) - ENGINE
9
13
12
18
8
6
11
14
0.14.2
0.14.0/01b
3
17
16
5
2
15
7
1
8
11
10
0.04.3
0.06.0
4
0.14.0/01d

Артикул

Название

Примечание

Количество

1

4780612

BRACKET

4шт.

2

10205810

WOODRUFF KEY,4mm x 6.5mm x 15.72mm

Woodruff

1шт.

3

4851923

GASKET,0.8mm Thk

1шт.

4

4607646

SPACER,50mm ID x 116.05mm OD x 6mm L

1шт.

5

98400782

GASKET,0.8mm Thk

1шт.

6

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

M8 x 16 x 1.4

3шт.

8

43362

NUT,M8 x 1.25, Cl 10

11шт.

9

17037721

NUT

M5

1шт.

10

11199271

LOCK WASHER

M5

1шт.

11

17089574

SEALING WASHER

JX75 NA Only

8шт.

12

99472104

FUEL INJECTION PUMP

JX75

1шт.

12

99472104R

REMAN-INJECTION PUMP

JX75

1шт.

12

99472104C

CORE-INJECTION PUMP

Return Number

1шт.

13

771326

WASHER,8.40mm ID

JX85 NA Only

8шт.

14

99472102

FUEL INJECTION PUMP

JX85

1шт.

15

500317389

FUEL SYSTEM INJECTOR

JX75

4шт.

15

500317389R

REMAN-INJECT NOZZLE

JX75

4шт.

15

500317389C

CORE-NOZZLE, INJECT

Return Number

4шт.

15

500307714

FUEL SYSTEM INJECTOR

JX85

4шт.

15

500307714R

REMAN-INJECT NOZZLE

JX85

4шт.

15

500307714C

CORE-NOZZLE, INJECT

Return Number

4шт.

16

500317390

NOZZLE

JX75

4шт.

16

99469341

NOZZLE

Assy, JX85

4шт.

17

14453589

O-RING,Cl II-18, 70 Duro, .739" ID x .070" Thk

4шт.

18

500303658

HOSE KIT

1шт.

Выбрано товаров: 26
