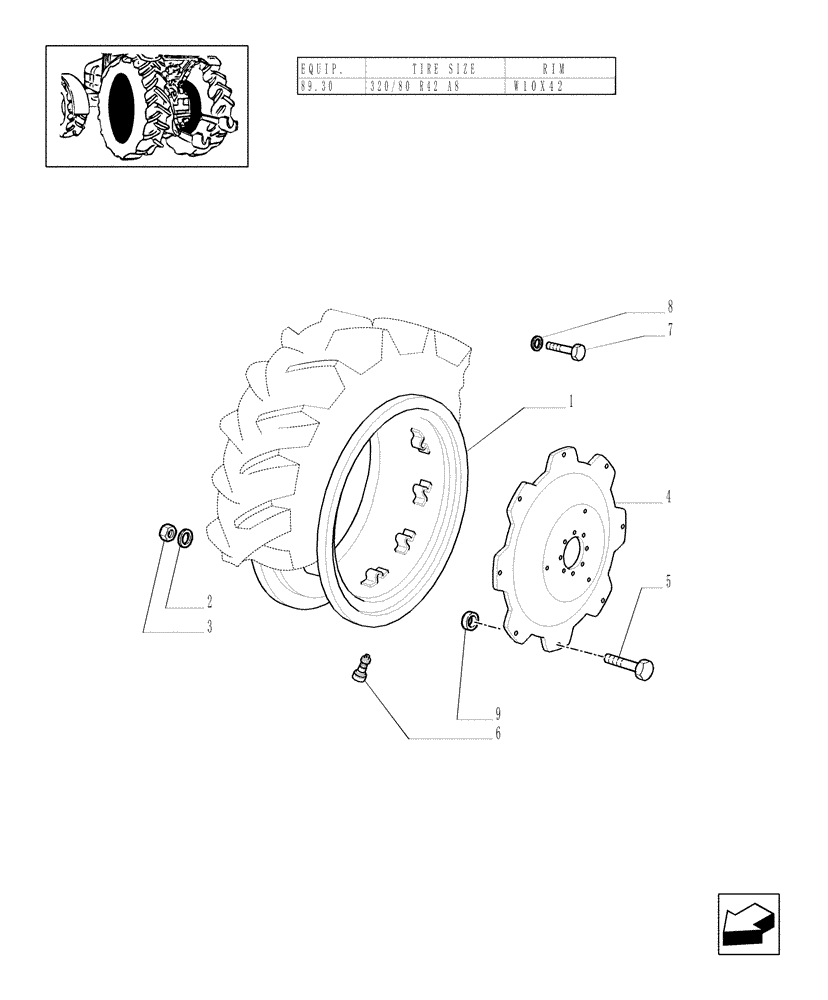

Запчасти Case IH JX85 (83.00[05]) - DRIVE WHEELS - FOR HIGH CLEARANCE VERSION (11) - WHEELS/TRACKS

1

5095330

RIM

W10x42

2шт.

2

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.

3

10790524

NUT,M16 x 1.5

16шт.

4

5095328

WHEEL DISC

2шт.

5

5096023

SCREW

M16x1.5x55

16шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

15983831

BOLT,Hex, M18 x 1.5 x 35mm, Cl 10.9

16шт.

8

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

16шт.

9

5095334

WASHER

D=10

16шт.
