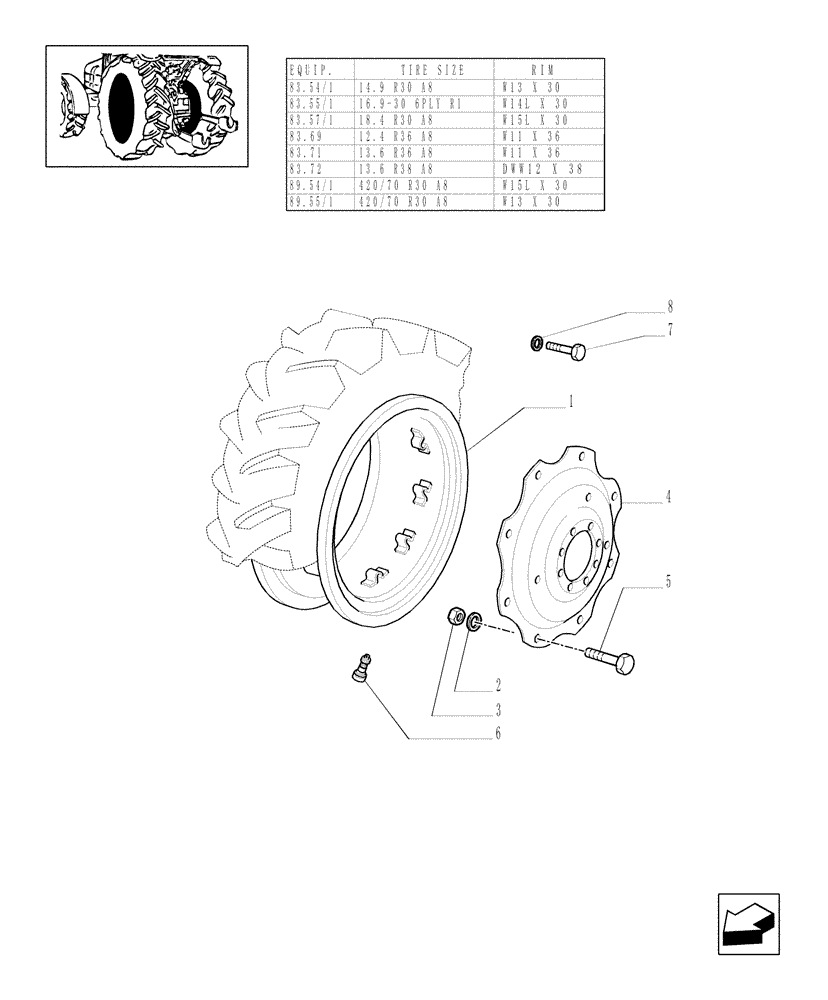

Запчасти Case IH JX85 (83.00[01]) - DRIVE WHEELS (11) - WHEELS/TRACKS

1

5092765

RIM

W13L x 30

2шт.

1

5091753

RIM

W14L x 30

2шт.

1

5094075

RIM

W15Lx30

2шт.

W/Equip. 83.57/1

1шт.

1

87317476

RIM,W15Lx30, 8 Bolts, Case IH Silver

W15Lx30

2шт.

W/Equip. 89.54/1

1шт.

1

47128182

RIM

W11 x 36

2шт.

1

47128192

RIM,DWW12 x 38, 8 Bolts, CASE Silver

DWW12 x 38

2шт.

2

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.

3

10790524

NUT,M16 x 1.5

16шт.

4

5091754

WHEEL DISC

D=664.9

2шт.

W/Equip. 83.54/1, 83.55/1, 83.57/1, 89.55/1

1шт.

4

87317478

WHEEL DISC,664.9mm Dia, 8 Bolts , Case IH Silver

D=664,9

2шт.

W/Equip. 89.54/1

1шт.

4

47129794

WHEEL DISC

D=818.4

2шт.

W/Equip. 83.69, 83.71

1шт.

4

47128171

WHEEL DISC,818.4mm Dia, 8 Bolts , Case IH Silver

D=818.4

2шт.

W/Equip. 83.72

1шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

15983831

BOLT,Hex, M18 x 1.5 x 35mm, Cl 10.9

16шт.

8

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

16шт.
