(82.00[05]) - DRIVING WHEELS - 4WD - FOR HIGH CLEARANCE VERSION

Запчасти Case IH JX85 (82.00[05]) - DRIVING WHEELS - 4WD - FOR HIGH CLEARANCE VERSION (11) - WHEELS/TRACKS

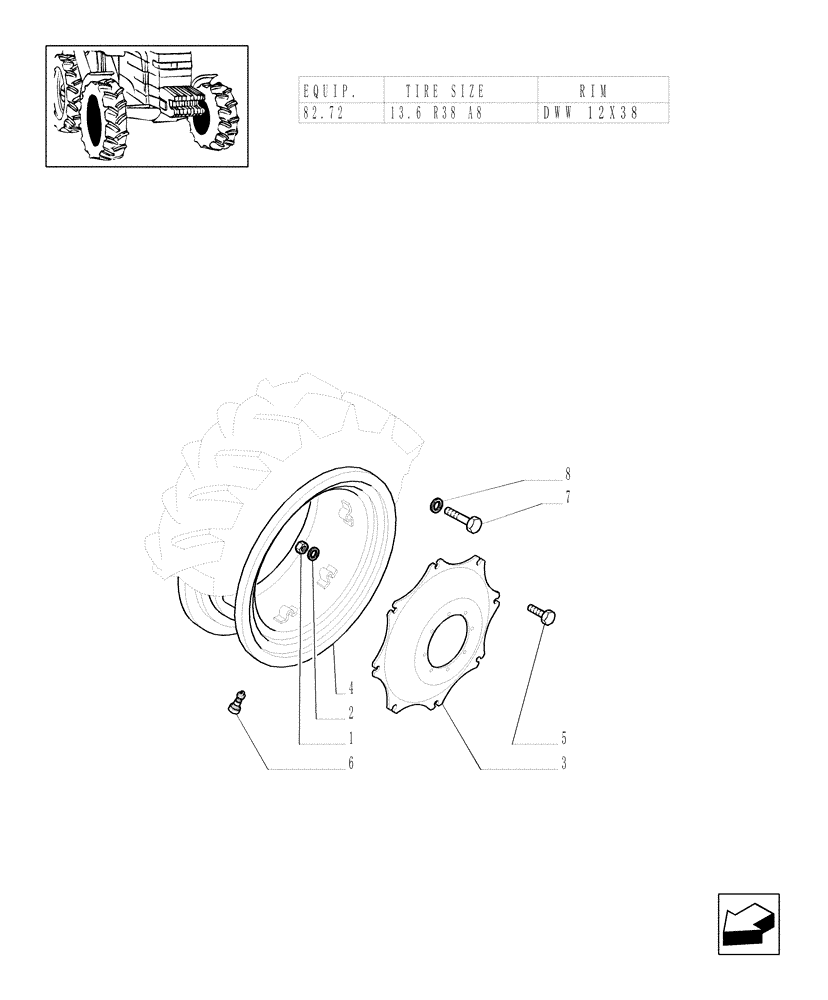

Схема запчастей Case IH JX85 - (82.00[05]) - DRIVING WHEELS - 4WD - FOR HIGH CLEARANCE VERSION (11) - WHEELS/TRACKS
1
dww 12x38
2
equip.
82.72
6
8
rim
7
4
13.6 r38 a8
tire size
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

10790524

NUT,M16 x 1.5

12шт.

2

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.

3

5094192

WHEEL DISC

2шт.

4

5094190

RIM

DWW12x38

2шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

16шт.

8

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.
