(82.00[01]) - DRIVING WHEELS - 4WD

Запчасти Case IH JX85 (82.00[01]) - DRIVING WHEELS - 4WD (11) - WHEELS/TRACKS

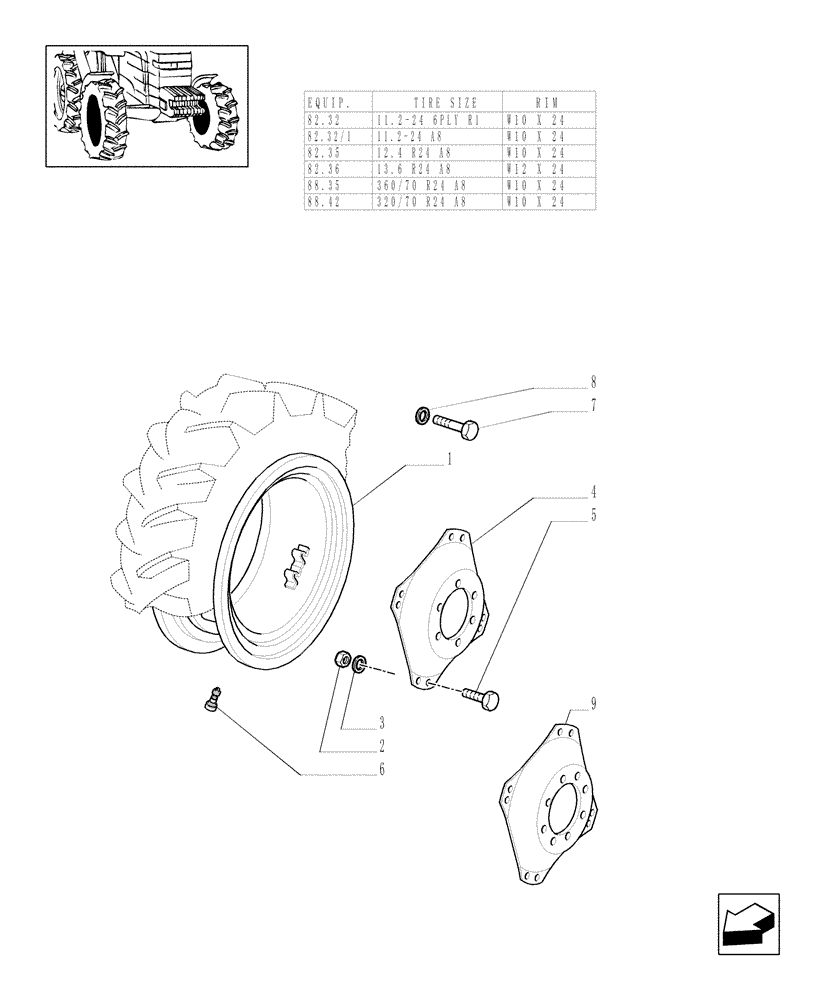

Схема запчастей Case IH JX85 - (82.00[01]) - DRIVING WHEELS - 4WD (11) - WHEELS/TRACKS
82.32
82.35
8
82.32/1
equip.
5
2
w10 x 24
7
w10 x 24
82.36
w10 x 24
w12 x 24
88.35
11.2-24 a8
4
11.2-24 6ply r1
w10 x 24
6
13.6 r24 a8
1
9
88.42
3
360/70 r24 a8
320/70 r24 a8
tire size
w10 x 24
rim
12.4 r24 a8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47128183

RIM,W10 x 24, 8 Bolts, CASE Silver

W10x24

2шт.

1

47128175

RIM,W12 x 24, 8 Bolts, CASE Silver

W12 x 24

2шт.

2

10790524

NUT,M16 x 1.5

16шт.

3

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.

4

87357858

WHEEL DISC,515mm DIA, 6 Bolts, CASE Silver

JX55, JX65

2шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

1шт.

8

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

1шт.

9

87357860

WHEEL DISC,515mm Dia, 8 Bolts , Case IH Silver

JX75, JX85, JX95

2шт.
