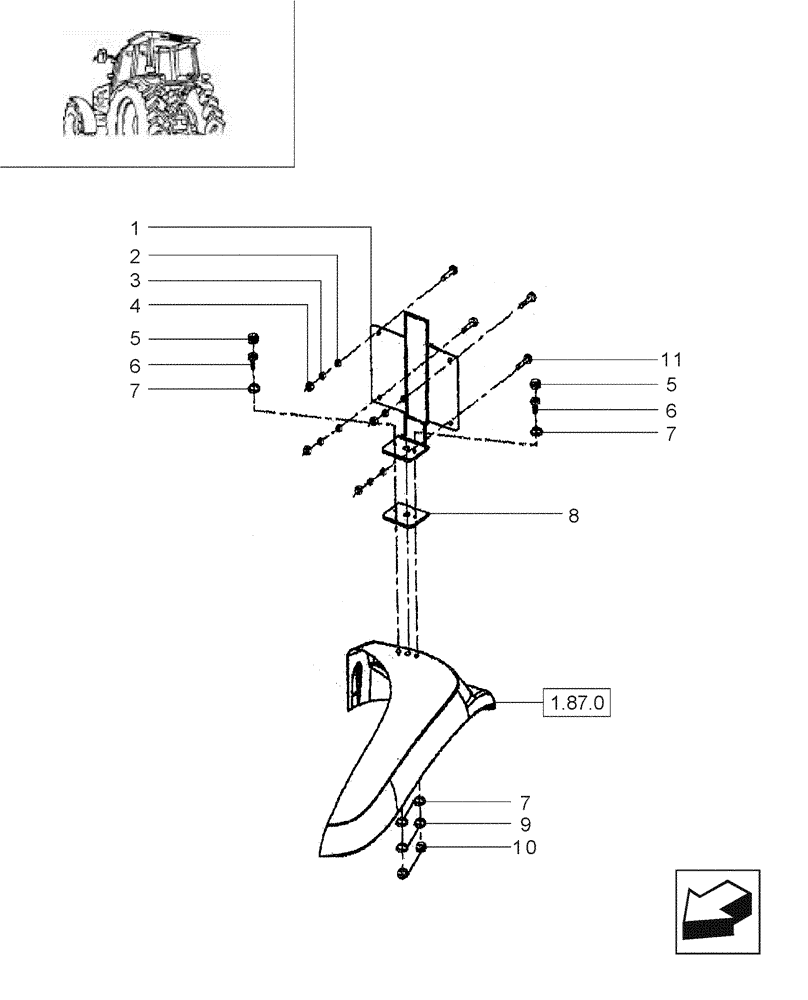

Запчасти Case IH JX85 (1.92.0[71]) - CAB - NUMBER PLATE MOUNT (10) - OPERATORS PLATFORM/CAB

1

5089432

SUPPORT

Plate Support Complete

1шт.

2

10519201

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

3

10571379

LOCK WASHER,M4

4шт.

4

10794011

NUT,M4, Cl 8

4шт.

5

5089481

CAP,17mm OD

2шт.

6

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

8

5089433

PAD

1шт.

9

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

11

10375011

SCREW,Sl Pan Hd, M4 x 14mm

4шт.
