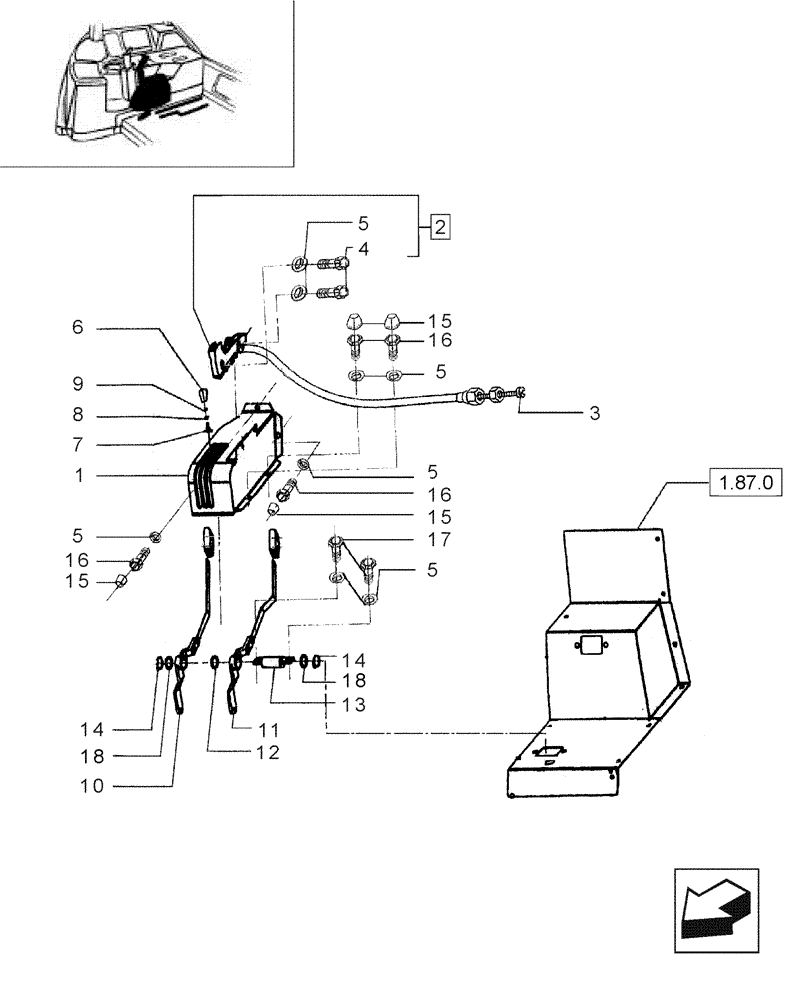

Запчасти Case IH JX85 (1.92.0[33]) - CAB - LIFTERS CONTROLS (10) - OPERATORS PLATFORM/CAB

1

5090515

SELECTOR CASE

1шт.

2

5089956

CONTROL

Lift

1шт.

3

5095046

CABLE

, Serial Range: -C5186

1шт.

3

5096996

CABLE,690mm L

, Start Serial: D5186

1шт.

4

5156605

BOLT,Hex, M8 x 1.25 x 24mm

2шт.

5

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

6

5177017

HANDLE GRIP

1шт.

7

5092951

LOCK

1шт.

8

5092952

CUP

1шт.

9

5092953

RUBBER WASHER,6mm ID x 16mm OD x 2mm Thk

1шт.

10

5090504

LEVER

Position Control, Complete

1шт.

11

5090503

LEVER

Hyd. Lift Power Command, Comp

1шт.

12

5089035

WASHER

1шт.

13

5133375

PIN,20mm OD x 100mm L

1шт.

14

11066976

SNAP RING,M21, Ext

2шт.

15

5089481

CAP,17mm OD

4шт.

16

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

17

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

18

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

D = 35 x 21 x 2

2шт.
