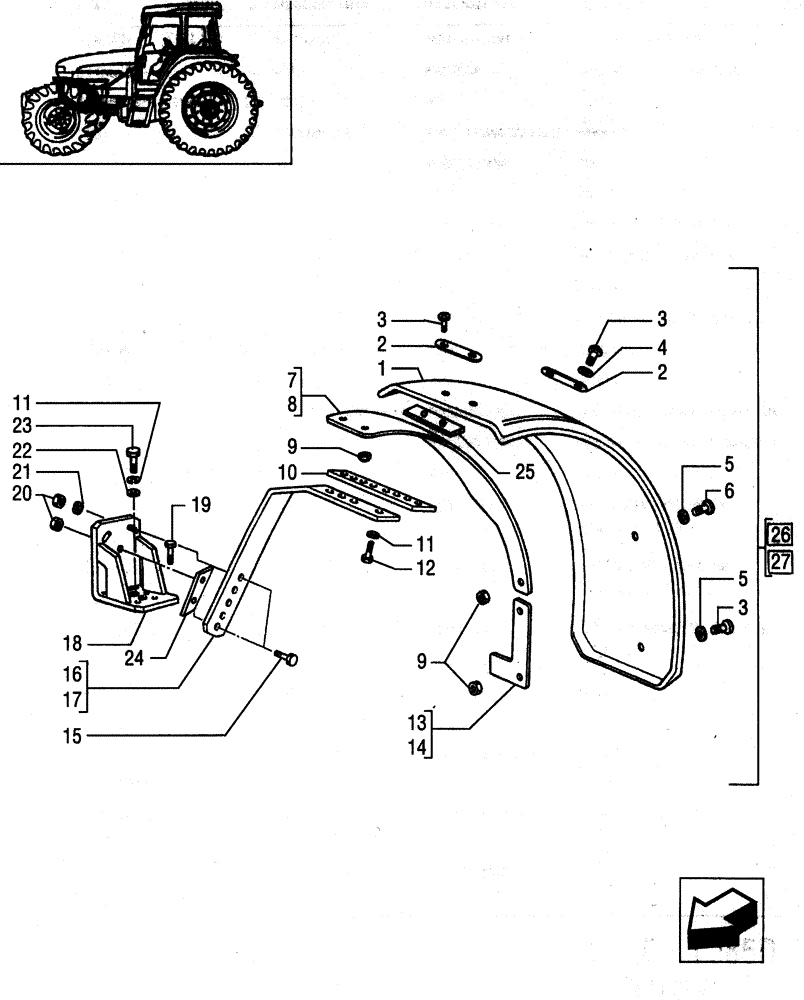

Запчасти Case IH JX85 (1.87.4) - (VAR.495) 4WD FRONT MUDGUARDS - 400MM (08) - SHEET METAL

1

5122325

FRONT FENDER

L= 400 mm

2шт.

2

5148599

REINFORCEMENT

4шт.

3

14782611

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

20шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

5

12644301

WASHER,M10 x 35 x 3

8шт.

6

14782511

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

8шт.

7

5148596

PANEL

LH

1шт.

8

5148597

PANEL

RH

1шт.

9

12574511

LOCK NUT,M10 x 1.25, Cl 8

8шт.

10

5148598

PLATE

2шт.

11

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

5шт.

12

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

13

5148600

REINFORCEMENT

RH

3шт.

14

5149441

REINFORCEMENT

LH

3шт.

15

11227021

BOLT,Hex, M14 x 1.5 x 65, 8.8

4шт.

16

5148594

SUPPORT

LH

1шт.

17

5148595

SUPPORT

RH

1шт.

18

5148602

SUPPORT

2шт.

19

14274831

LOCK BOLT,Self Lkg, M12 x 1.25 x 45mm

M12 x 1.25 x 45

2шт.

20

12574815

LOCK NUT,M14 x 1.5, Cl 8

4шт.

21

10520101

WASHER,14.4mm ID x 26mm OD x 3mm Thk

2шт.

22

5116400

LOCK WASHER

D=12.5 x 35 x 5

2шт.

23

15540931

BOLT,Hex, M12 x 1.25 x 55mm, Cl 10.9

2шт.

24

5093172

SPACER

2шт.

25

5148601

PLATE

2шт.

26

5093268

FRONT FENDER

LH

1шт.

27

5093271

FRONT FENDER

RH

1шт.
